Linear Motion Systems
-
Linear Motion Systemslm-equip
Semi-Custom Actuators
Offering short-stroke and long-stroke designs. Intermediate supports for high-speed transport and critical speed conditions also available.
-
Linear Motion Systemslm-equip
Low Profile Actuators
Designed with an aluminum profile cover with a sealed design for particle and water protection. Maintenance-free and supports a maximum stroke of 1325mm.
-
Linear Motion Systemslm-equip

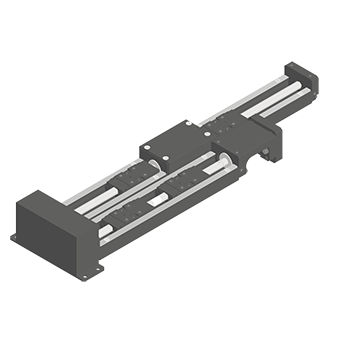

Dual-Motion Ball Screw Actuators
The two tables can be operated freely, with a maximum stroke of 1800mm. Equipped with intermediate supports to handle critical speeds.
-
Linear Motion Systemslm-equip
Bevel Gear Type Bidirectional Actuators
Achieving bidirectional motion beyond what is available through our single axis unit offerings.
-
Linear Motion Systemslm-equip

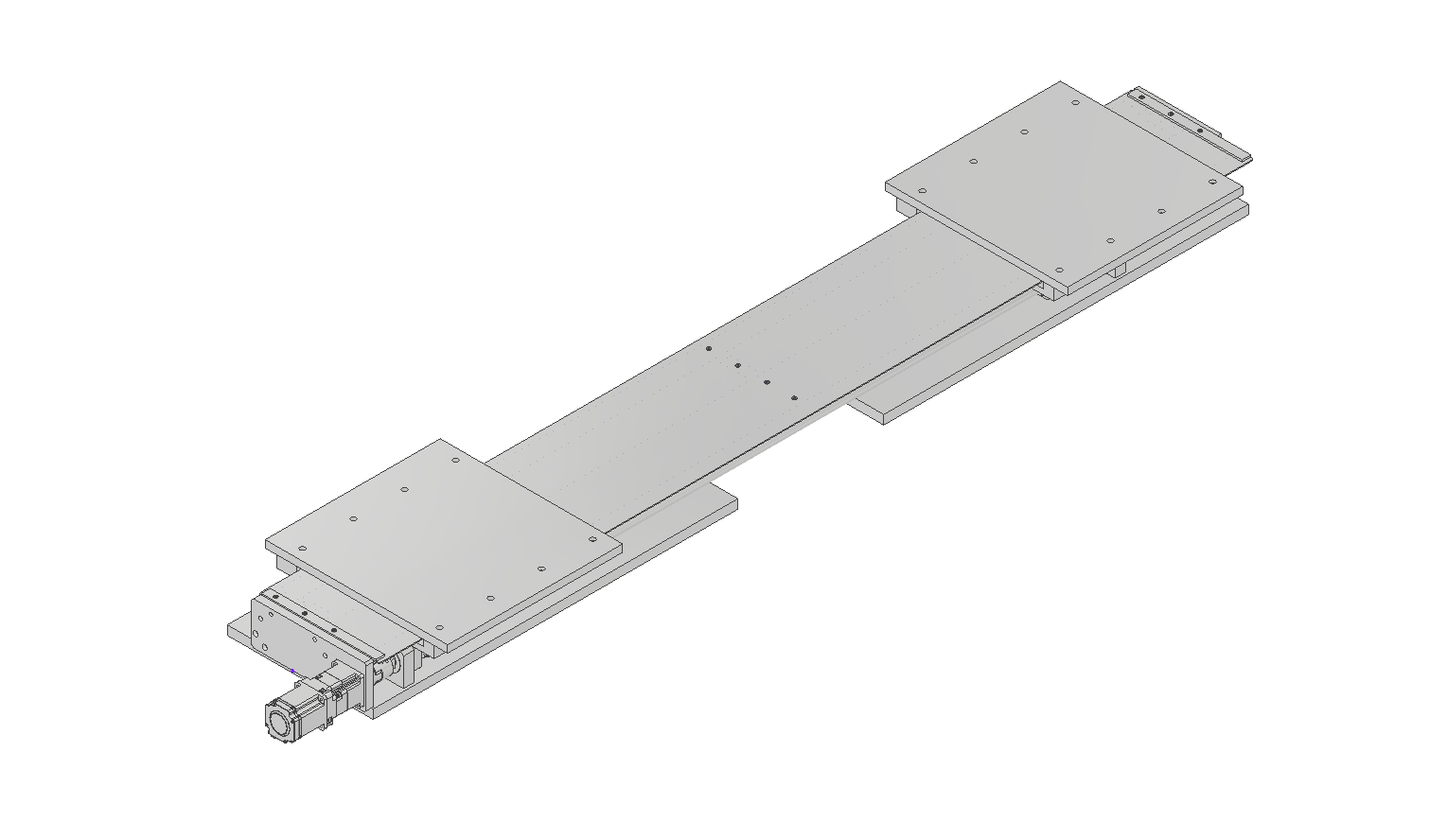

Robot Transfer Actuators
Supports robots weighing up to 300 kg. Maximum stroke of 2500mm. Top cover options available. Compatibility with various power sources.
-
Linear Motion Systemslm-equip
Ball Screw Variable Lead Units
Provides flexible motion options via ball screw-driven multi-pitch conversion or gear conversion.
All dimensions subject to alteration without notice.
MENU
As a manufacturer of precision ball screws used in drive devices, we propose optimal linear motion systems according to the "design, specifications, and applications" that meet the various needs of our customers at their work sites.
In addition to linear motion systems using KURODA ball screws, we can also propose linear motion systems tailored to the specifications of our customers, such as belt drives, linear drives, and ultra-long stroke actuators, to meet the diverse needs of our customers.
- Want to transport at high speeds of over 1000mm/s
- Want to keep the height low and make the conveying section of the equipment compact
- I want an actuator with an ultra-long stroke of 10m to be used for transporting the workpiece after removal.
- I want an actuator that can withstand loads of over 300 kg.
- You want an actuator with high torque, but with reduced moment of inertia and power consumption.

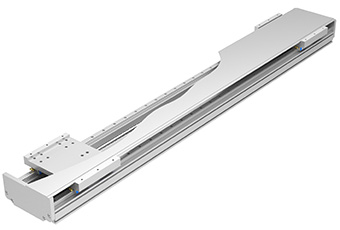

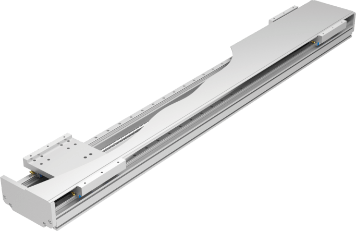

Low Profile Actuators
■Features
・Low profile design with ball screw shaft diameter of 16 mm
・Maintenance-free, maximum stroke of 1325 mm
■Custom
・Side deflector ball screw AD series with new circulation method
・Dust-proof and water-resistant specification covered with aluminum profile

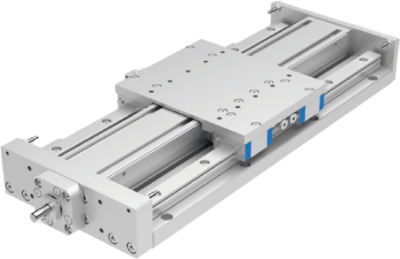

Dual motion type ball screw actuator
■Features
・Dual motion actuator driven by a ball screw
・Two tables can be driven freely and at will
・Maximum 1800mm, with top cover, can avoid dangerous speeds
■Custom
・Side deflector ball screw AD series with new circulation method
・With intermediate support for high speed transport and dangerous speeds

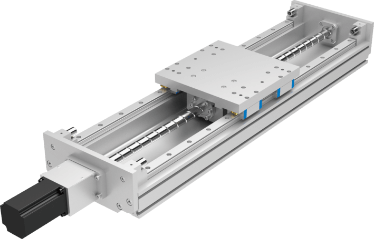

Semi-order actuator
■Features
・Various drives can be selected, such as ball screw, belt, linear, etc.
・Strokes can be designed and manufactured in 1mm increments
■Custom
・Side deflector ball screw AD series with new circulation method
・With intermediate support for high speed transport and critical speeds
Case 1: Want to keep the height low and make the conveying section of the equipment compact
■Low Profile Actuators
The low profile design features a ball screw shaft diameter of 16 mm, making it possible to reduce the overall equipment space by approximately 30%.
Case 2: Want to design the optimal product for the transport line?
■Dual motion ball screw actuator
One actuator allows two tables to move freely and at will, making it ideal for transport lines where electricity is passed through boards to test continuity and insulation resistance.
Case 3: Stroke can be designed and manufactured in 1mm increments
■Semi-order actuators
Various drives can be selected, including ball screw, belt, and linear.
Case 4: Want a right-hand screw actuator with short delivery time and low cost

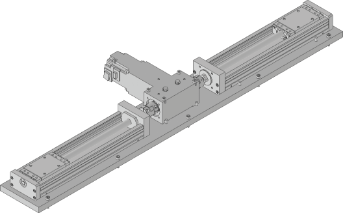

■Bevel gear type left and right screw actuator
Standard SE series left and right screw actuator enables short delivery times and long strokes.
Case 5: I want an actuator that can withstand loads of over 300 kg.

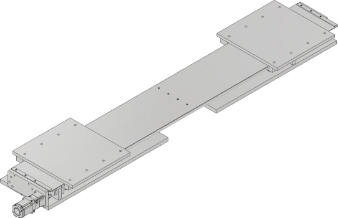

■Robot transport actuator
An actuator capable of withstanding loads up to 2500 mm that people or robots can stand on, with a top cover and compatible with various drive sources.
Case 6: A single drive source is needed to realize compact, multi-pitch movement.
■Ball screw variable lead unit
Equipped with a left-right screw actuator, which is a standard stock item, it supports multiple pitch changes by ball screw drive and a variety of movements by gear conversion.
Inquiries About Products
Please contact us using the inquiry form or your nearest sales office.
