Ball Screw Actuators
-
Ball Screw Actuatorsbsa
NEW: Bidirectional Actuator
By simultaneously using left and right screw threads in the actuator's drive component, symmetrical back-and-forth motion is achieved.
Enables simplified, compact design by performing both the opening and closing functions of a gripping mechanism with a single actuator. -
Ball Screw Actuatorsbsa
Clean Actuator SC Series
The new and improved SC Series.
Now optimized for superior performance in clean environments. -
Ball Screw Actuatorsbsa
Parallel Motor Mount Option for Compact Ball Screw Actuators（SE15/SE23）
Solves the issue of ball screw shaft end breakage due to excessive tensioning of the timing belt.
-
Ball Screw Actuatorsbsa
SE Series
KURODA ballscrew actuators are compact, single-axis units consisting of a ball screw and a linear guide rail. By designing the slide block to fit within a U-shaped guide rail, the actuators achieve a compact, low-profile design when compared with conventional ball screw installations.
The SE series deliver excellent accuracy and rigidity, making them especially suitable for precision positioning. -
Ball Screw Actuatorsbsa
SG Series
KURODA ballscrew actuators are compact, single-axis units consisting of a ball screw and a linear guide rail. By designing the slide block to fit within a U-shaped guide rail, the actuators achieve a compact, low-profile design when compared with conventional ball screw installations.
The SE series deliver excellent accuracy and rigidity, making them especially suitable for precision positioning. -
Lubrication Units Lubseal™bsa_cat

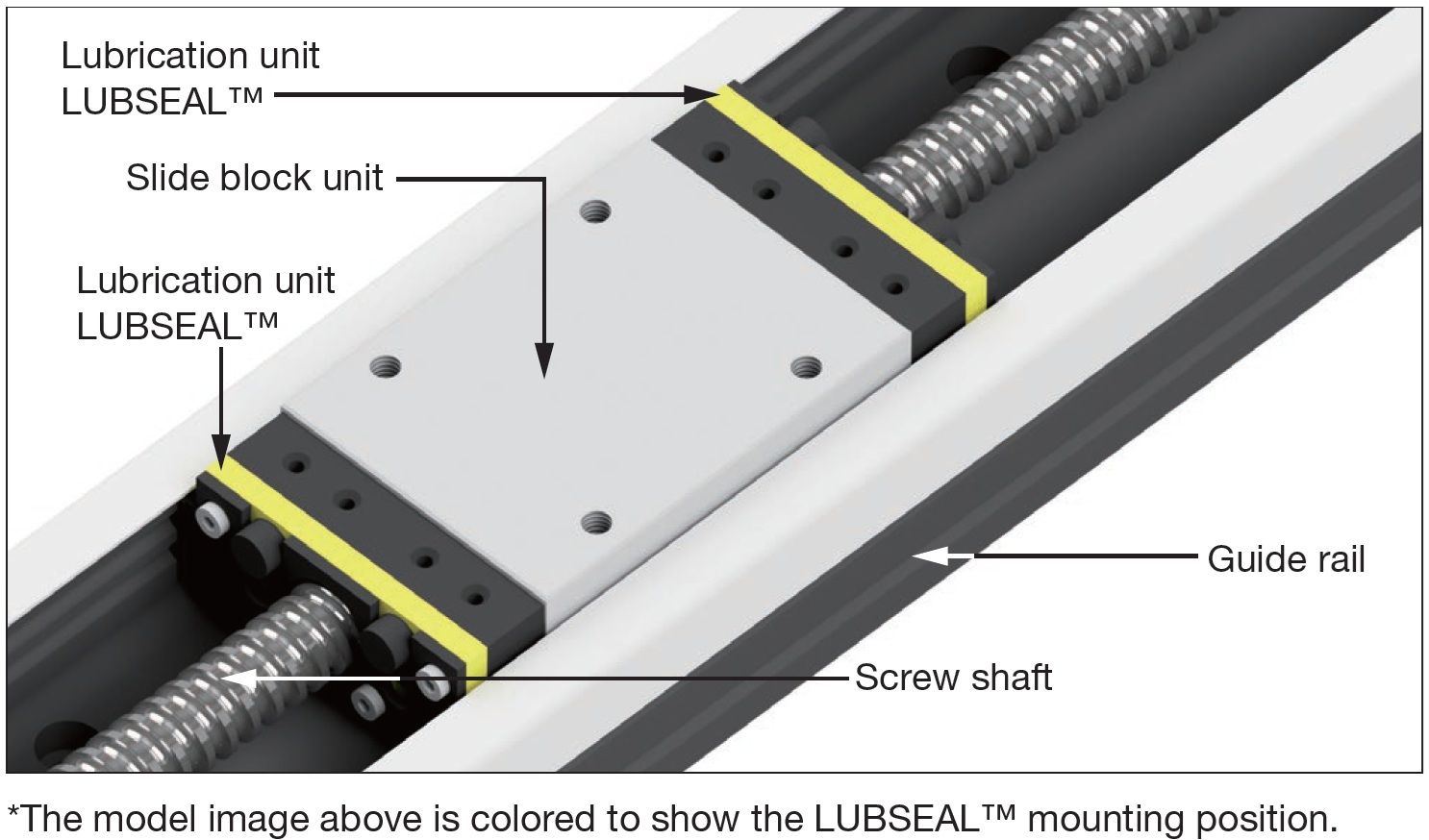

Ball Screw Lubrication Units LUBSEAL™
LUBSEAL™ is an eco-friendly EcoTools™ that supplies a proper volume of grease to a ballscrew actuator.
It contacts grooves on screw shaft and ball rolling point on guide rail. It also fits into both ends of a slide block in a ball screw actuator compactly. -
Grease（Ball Screw Actuators）bsa_grease
Low Particle Generating Grease / KURODA S-Grease
Support Tools
MENU
-
1.Select a Product Using the Ball Screw Actuator Selection Software
Based on your usage conditions, you can select the appropriate ball screw actuator from Kuroda’s range of products.
Click here for Ball Screw Actuator Selection Software -
2.Quotation
Please request a quotation through our authorized distributors or registered vendors.
-
3.Ordering, Manufacturing, and Shipment
If you’re not using the selection software or are considering non-catalog specifications, please contact us for engineering review.
When making an inquiry, please include the following information:
For custom products we will prepare an "Approval Drawing (KURODA's Official Design Document)." Please review and confirm the details.
Required: Table mass, mounting orientation, table speed, stroke, type of sliding guide, center of gravity position, etc.
Optional: Function (e.g., transport, positioning, pressing, etc.)
Optional: Desired ball screw actuator (e.g., guiderail length, body height, etc.)
Optional: System-level application (e.g., CNC Machine, Semiconduction Manufacturing Equipment, Medical Device, Inspection Equipment, 3D Printer, etc.)
Inquiries About Products
Please contact us using the inquiry form or your nearest sales office.
