I want to control the thread depth. How should I measure it?
Managing the thread depth extends the life of tools (taps), shortens processing time, and reduces cutting chips, leading to reduced man-hours.
Thread depth can be easily measured by using a gauge with functions.
We can also manufacture gauges with functions suitable for various work shapes, so please feel free to contact us.

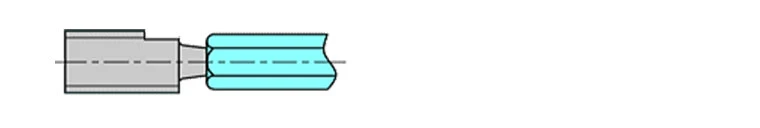

Notched thread depth plug gauge
The base of the thread gauge has a notch.
When the gauge is screwed into the workpiece, the end face of the workpiece stops within the notch range to check whether the thread depth is within the tolerance.
