Order Made Deflector Ball Screws DR Series

  • Order Made Deflector Ball Screws DR Series

For precision positioning applications that require space-saving components

Expanded size options and lengths for the D Series of deflector ball screws.

MENU

Features

Industry leading space efficiency

The industry’s smallest nut dimensions achieved through a specialized ball recirculation system.

Fine lead, high precision

With lead options ranging from 1 to 10 mm, D Series ball screws well suited for equipment that require precision positioning.

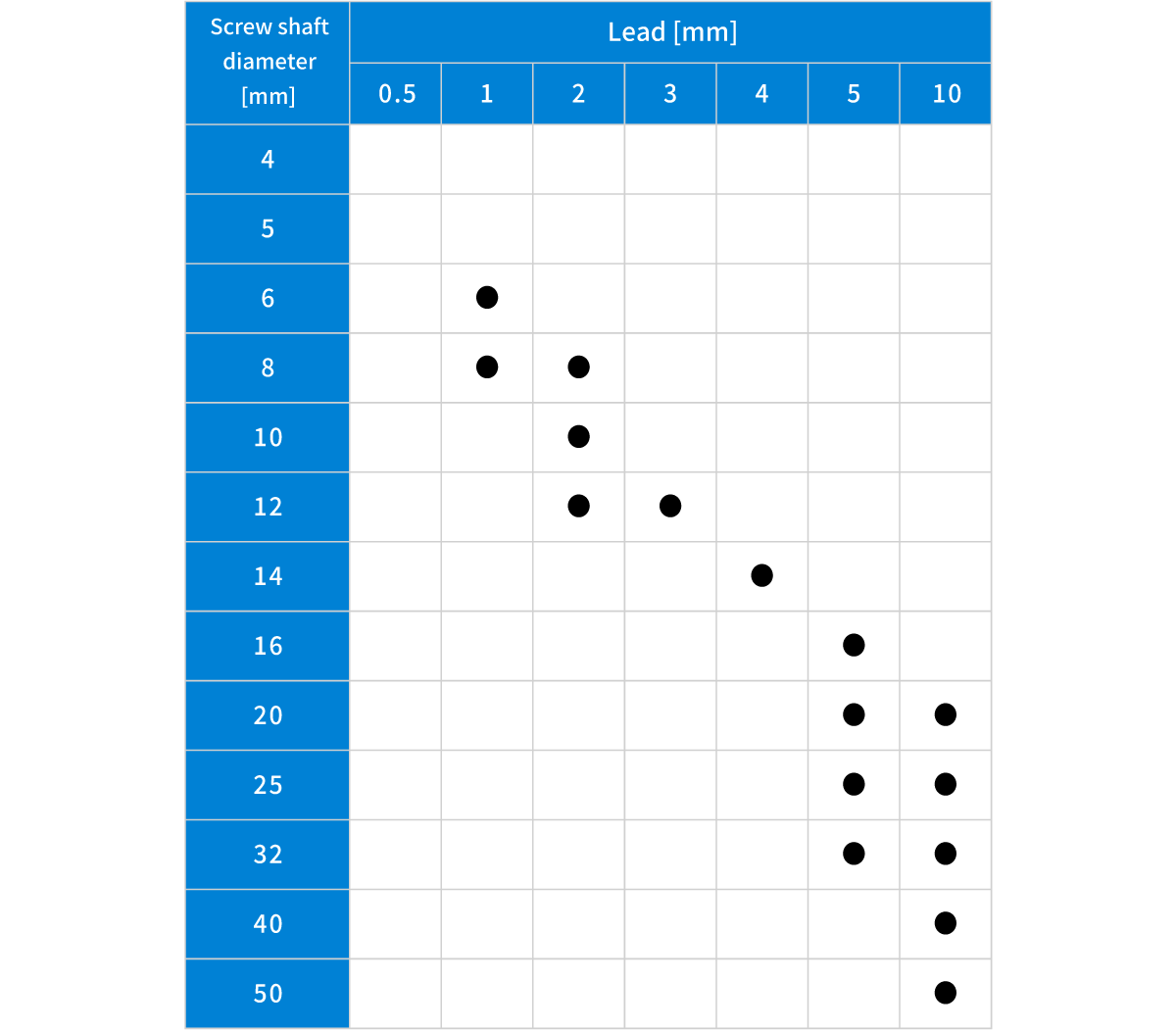

Performance / Specifications
Screw shaft diameter 6 to 50mm
Lead 1 to 10mm
Accuracy grade C0 to C7 grade（integral nut C0 ～ C5）
Nut type single nut, integral nut
Recirculation system deflector method

Exterior configuration

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
