Order Made End Deflector Ball Screws FR Series

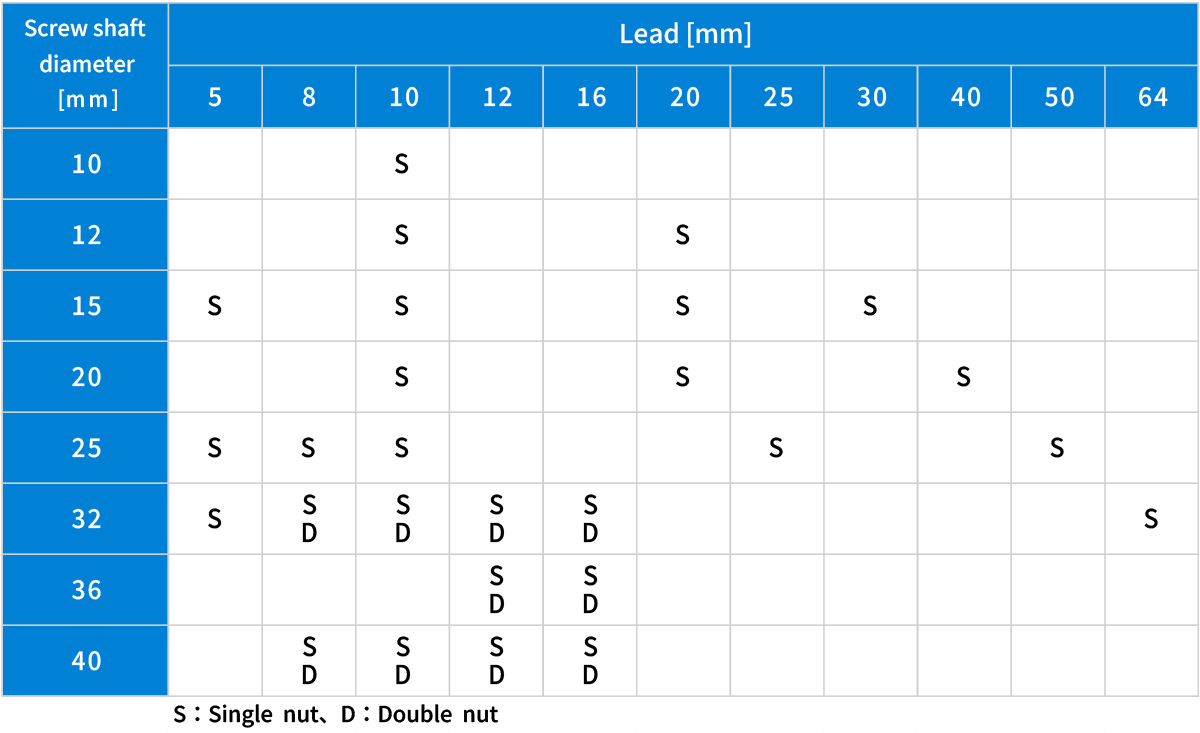

Shaft diameter: ø10 to ø40 mm, accuracy grades C3 to C7
Expanded size options and lengths for the F Series of end deflector ball screws.
MENU
High rotational speed with higher load ratings
- Delivers rotational speed up to 5,000 min-1.
- Table speed of up to 2.5 m/sec. (Note: when using FR1530).
Quiet
- Sound pressure has been reduced up to 6dB when compared to conventional tube recirculation method ball screws.
Compact

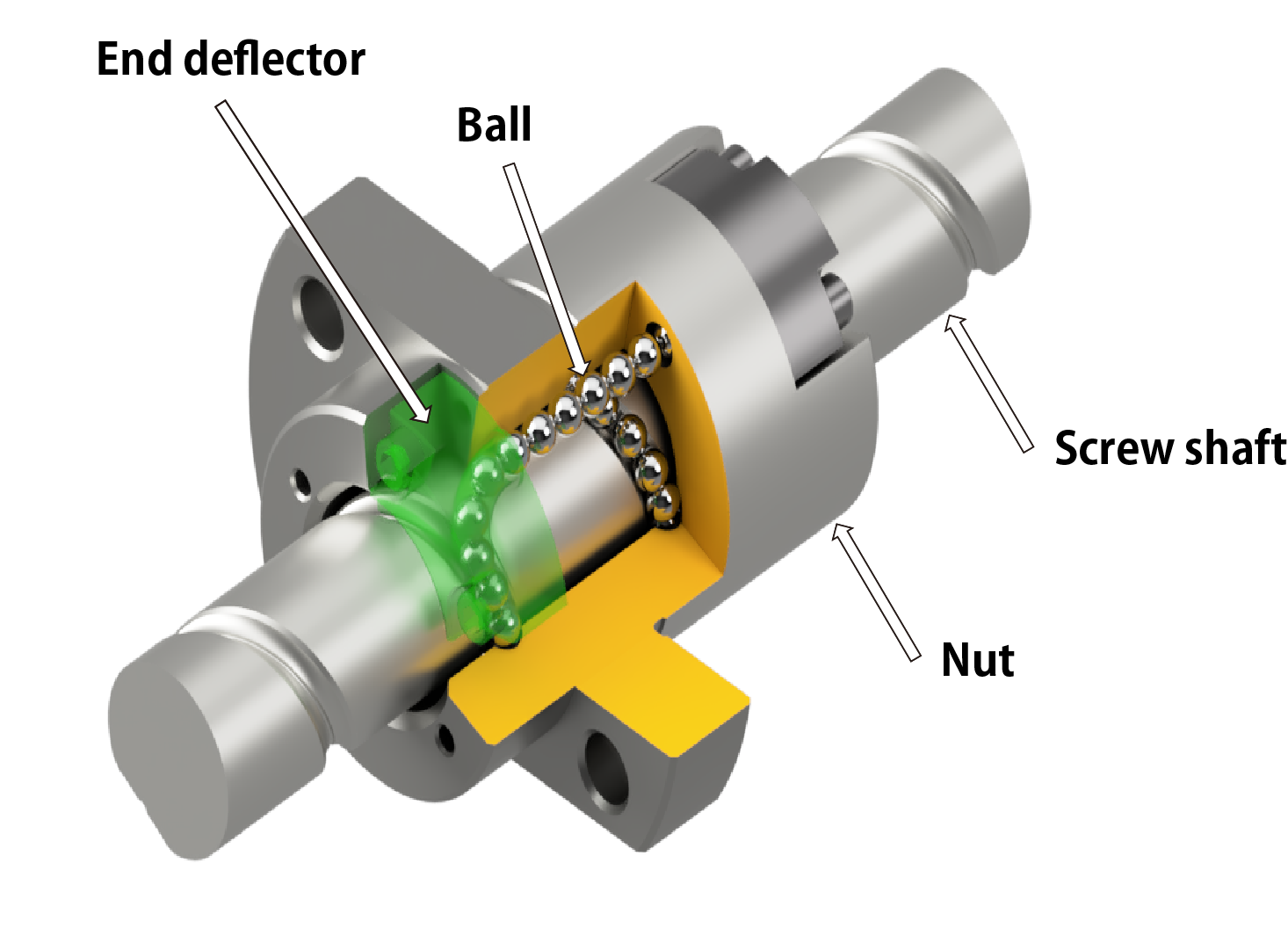

- Recirculation components designed into the ends of the nut. Nut length reduced for stroke-sensitive applications.
Higher load ratings and longer service life
- By maintaining the ball diameters used in KURODA’s conventional products, the F Series offers superior basic dynamic load rating and basic static load ratings.
