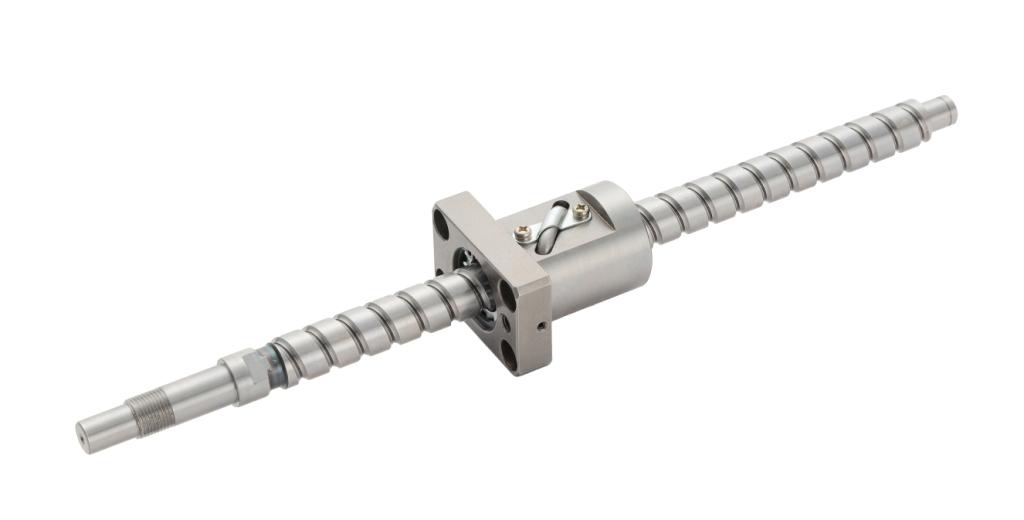

Order Made Tube Method Ball Screws GR Series

  • Order Made Tube Method Ball Screws GR Series
  • Order Made Tube Method Ball Screws GR Series

Screw shaft outer diameters ø5–ø125
Accuracy grades C0–C10

Expanded size options and lengths for the G Series of tube method ball screws.

MENU

Features

Wide range of size and lead offerings

Eliminating unnecessary compromise in size and lead selection.

Supporting many industries

Avoid overspecification and choose the accuracy grade that best suits your requirements

Performance / Specifications

Screw shaft diameter: 5 to 125mm, Lead: 1 to 50mm
Screw shaft diameter 5 to 125mm
Lead 1 to 50mm
Accuracy grade C0 to C10 grade
Nut type single nut, integral nut, double nut
Recirculation system tube method

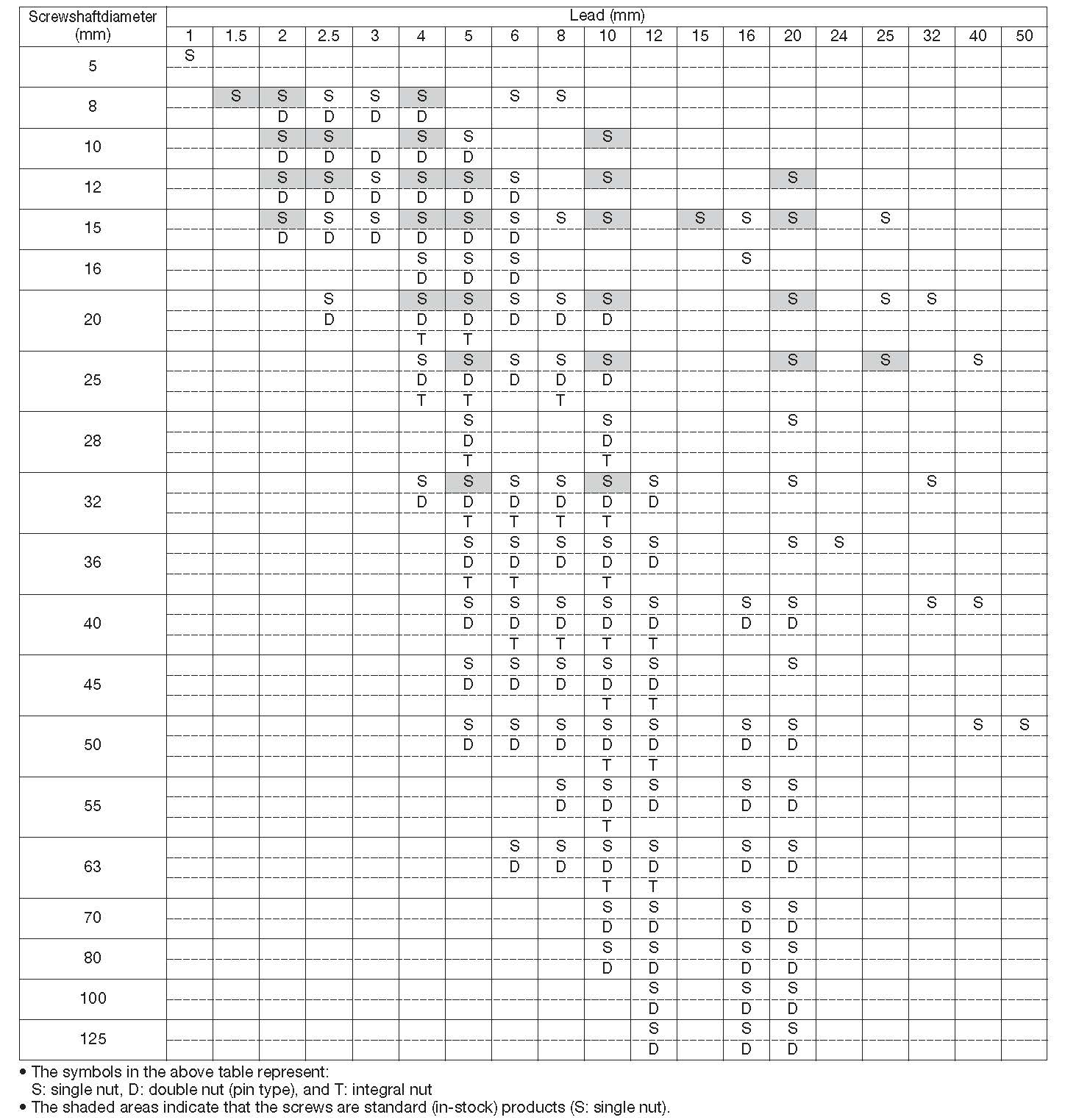

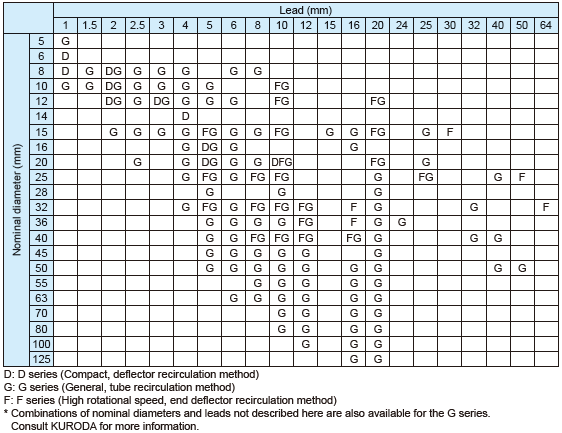

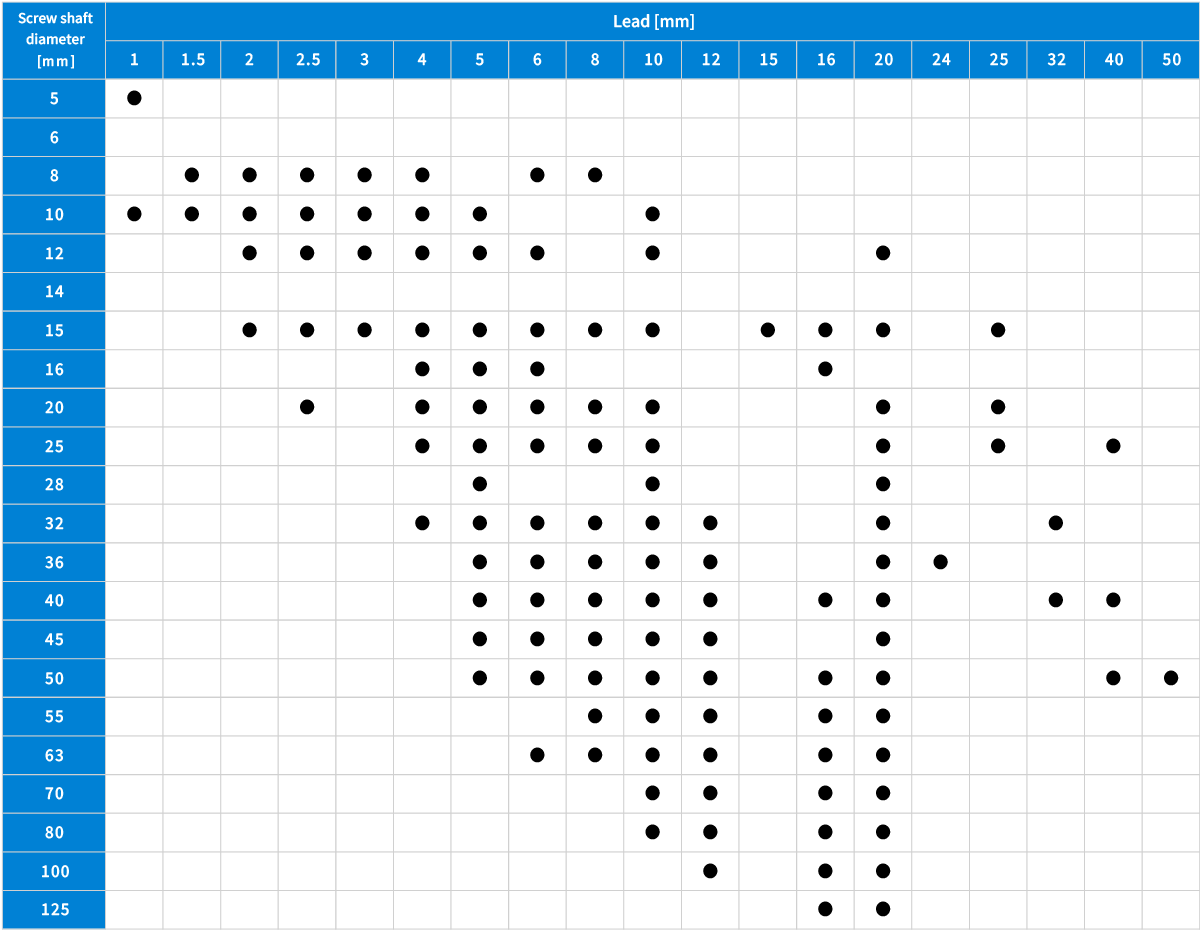

Shaft diameter and lead combinations

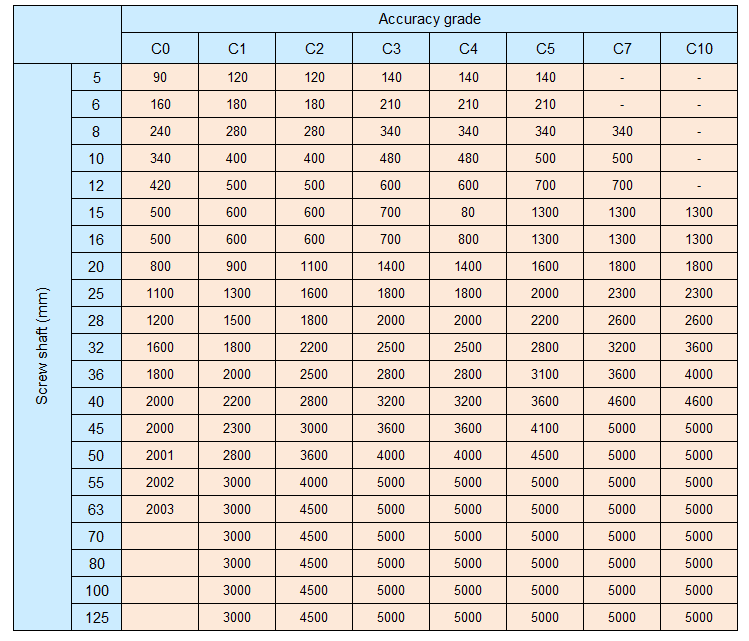

Accuracy Grade and Manufacturable Length of Screw Shaft

May differ depending on the specifications available length table. For more information, please contact us.

Ordering Number

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
