Deflector Ball Screws DP Series US

  • Deflector Ball Screws D Series

Compact, for precision positioning

Fine lead motion control with the industry’s smallest nut dimensions.

MENU

Features

Industry leading space efficiency

The industry’s smallest nut dimensions achieved through a specialized ball recirculation system.

Fine lead, high precision

With lead options ranging from 1 to 4 mm, DP Series ball screws well suited for equipment that require precision positioning.

Exterior configuration

Standard Ground Ball Screws / DP Series: Accuracy grade C3

The screw shaft fixed end is machined to KURODA's recommended design. The screw shaft supported end may need additional machining depending on the conditions of use.

Performance / Specifications
Shaft diameter Φ6 to Φ14mm
Lead 1 to 4mm
Accuracy grade C3 grades
Nut type single nut
Recirculation system deflector method

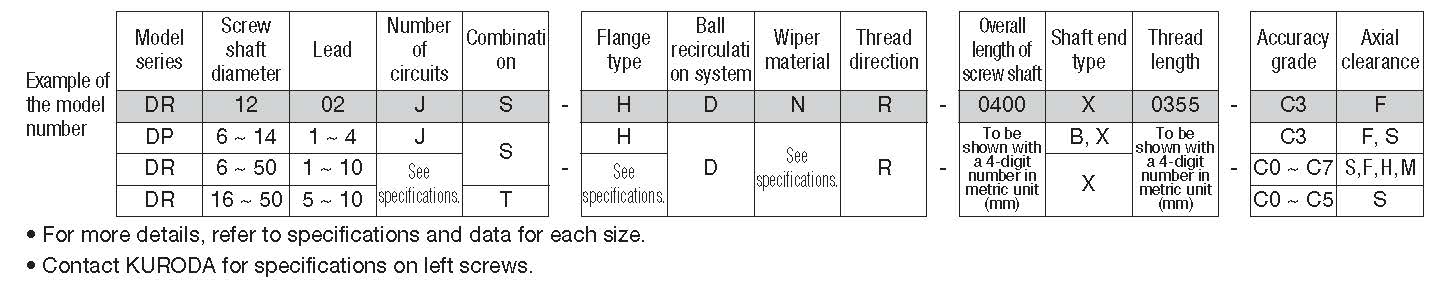

Ordering Number
