End Deflector Ball Screws F Series

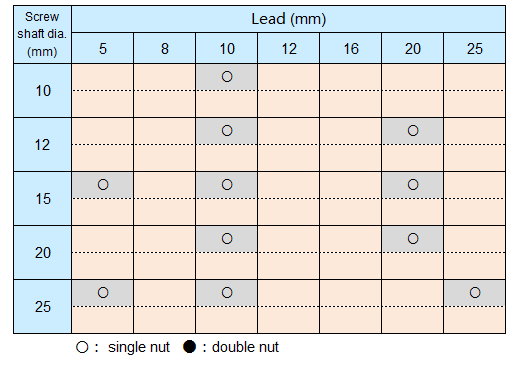

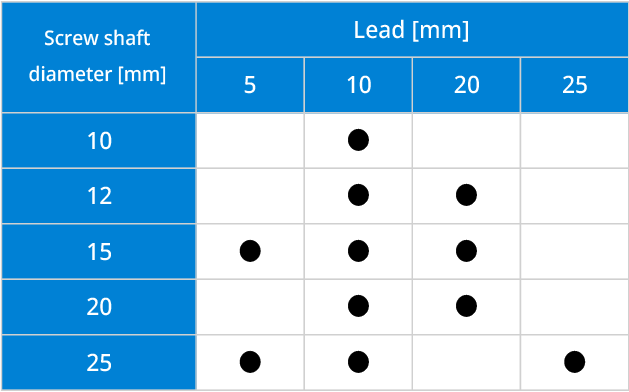

Shaft diameter ø10 to ø25, accuracy grades C5, C7
Lower sound pressure, more compact, higher speed capabilities, all without affecting the specifications of conventional products.
MENU
High rotational speed with higher load ratings
- Delivers rotational speed up to 5,000 min-1.
Quiet
Sound pressure has been reduced up to 6dB when compared to conventional tube recirculation method ball screws.
Compact
Recirculation components designed into the ends of the nut. Nut length reduced for stroke-sentitive applications.
Higher load ratings and longer service life
By maintaining the ball diameters used in KURODA’s conventional products, the F Series offers superior basic dynamic load rating and basic static load ratings.
