Tube Method Rolled Ball Screws GW Series (Grade C7) / GY Series (Grade C10) US

  • Tube Method Rolled Ball Screws GW Series (Grade C7) / GY Series (Grade C10)
  • Tube Method Rolled Ball Screws GW Series (Grade C7) / GY Series (Grade C10)

For conveyance, available in a wide variety of sizes using a rolled shaft

Wide variety of designs, with a long history of expertise.

MENU

Features

Wide range of size and lead offerings

Eliminating unnecessary compromise in size and lead selection.

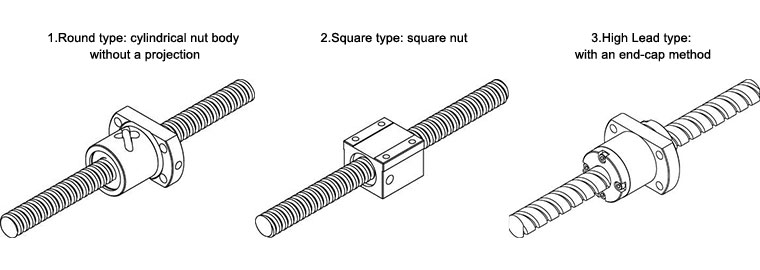

Several nut types for varied requirements

3 types of nuts (round, square and high-lead) are available.

Performance / Specifications
GW Series GY Series
Shaft diameter 8 to 25mm 8 to 40mm
Lead 2 to 40mm
Accuracy grade Grade C7 Grade C10
Nut combination Nut combination
Nut type round, square and High-Lead types

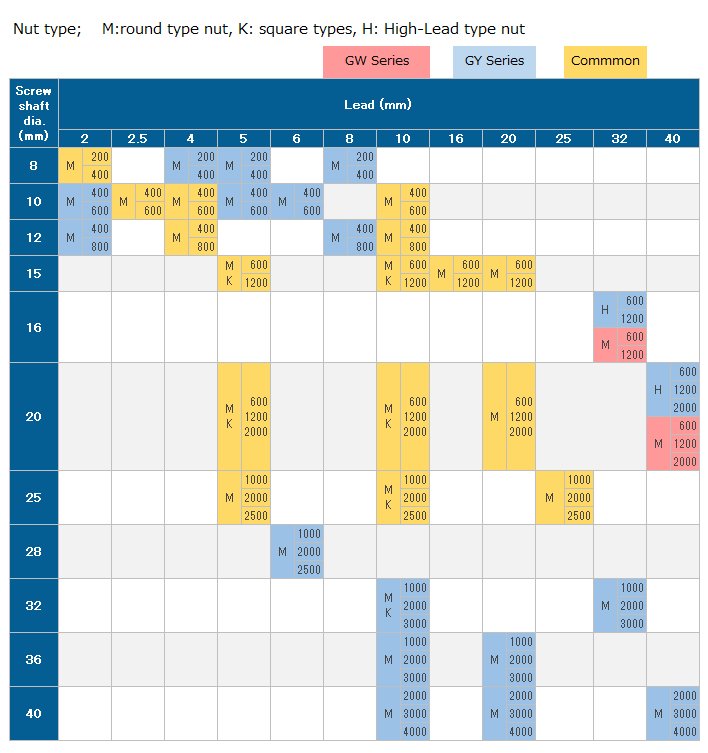

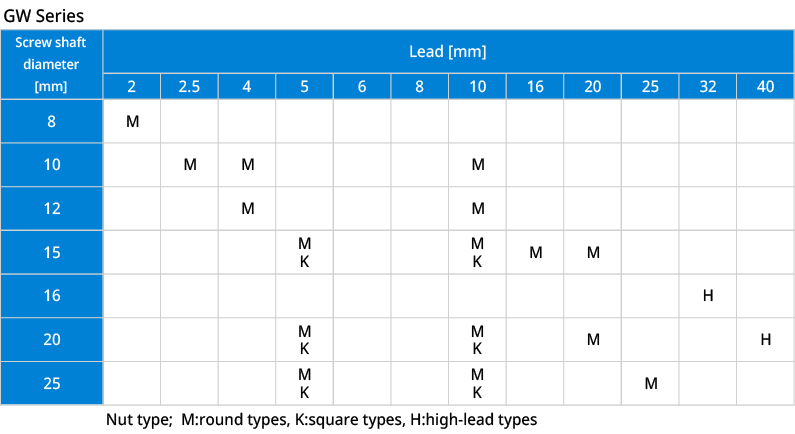

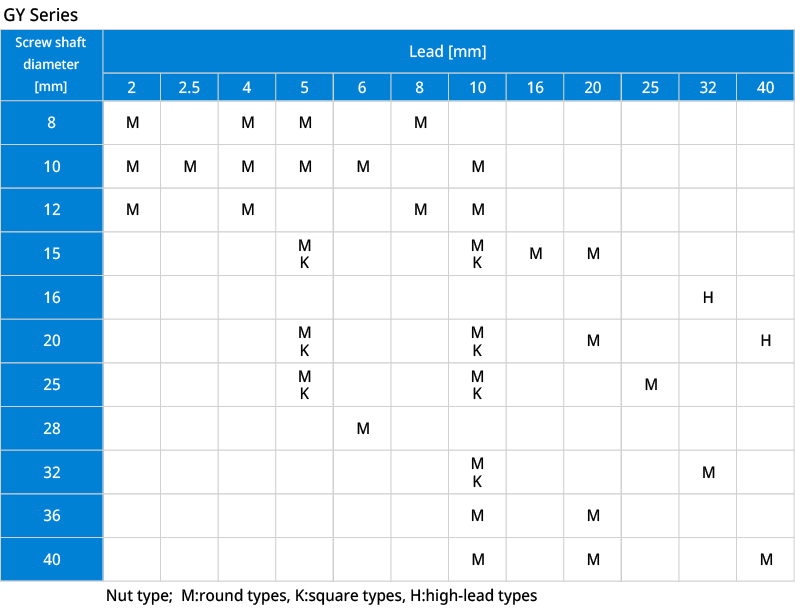

Shaft diameter and Lead combinations

Ordering Number

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
