Lead Screws with Resin Nuts PW Series (Grade C7) / PY Series (Grade C10) US

  • Lead Screws with Resin Nuts PW Series (Grade C10) / PY Series (Grade C10)

Shaft diameter ø10, ø12 Accuracy grades, C7, C10

Favored in applications where precision and efficiency requirements are moderate, and cost or simplicity are prioritized.

MENU

Features

Made by converting the rolling technology for ball screws

  • Slide screws with resin nuts achieve a lead accuracy of the screw shaft equivalent to accuracy grades C7 and C10 of ball screws.

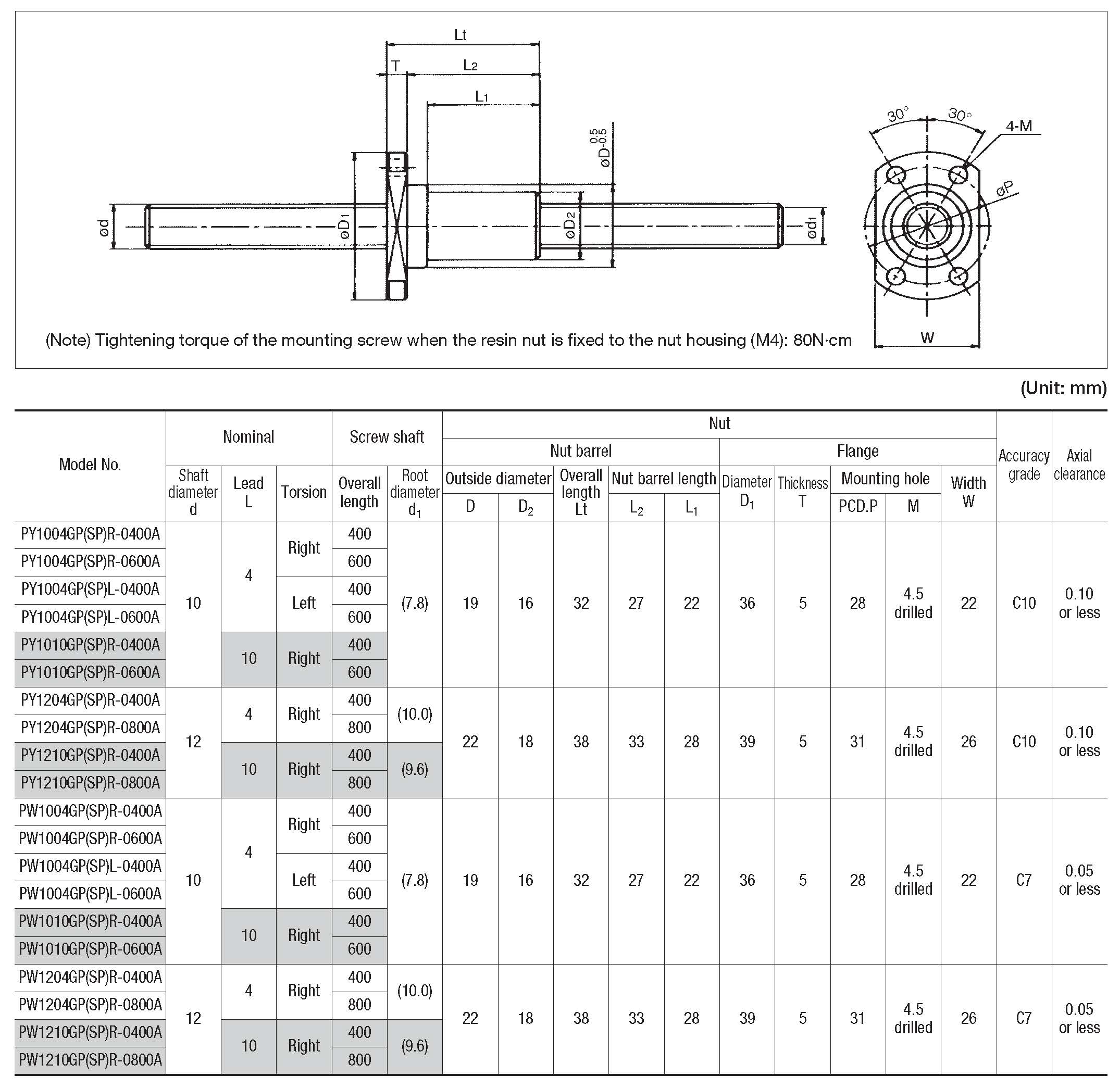

Exterior configuration

Standard lead screws / PW Series: Accuracy grade C7, PY Series: Accuracy grade C10

The screw shaft ends are unfinished to enable additional machining dimensions required for the customer’s application.
The screw shaft supported end may need additional machining depending on the conditions of use.

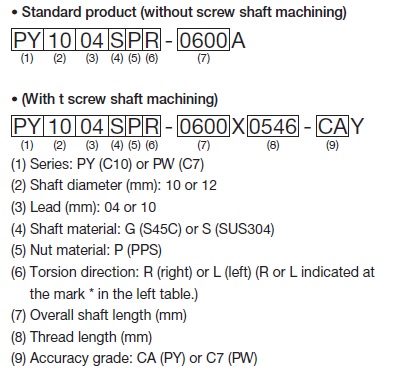

Ordering Number

Standard lead screws / PW Series: Accuracy grade C7, PY Series: Accuracy grade C10

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
