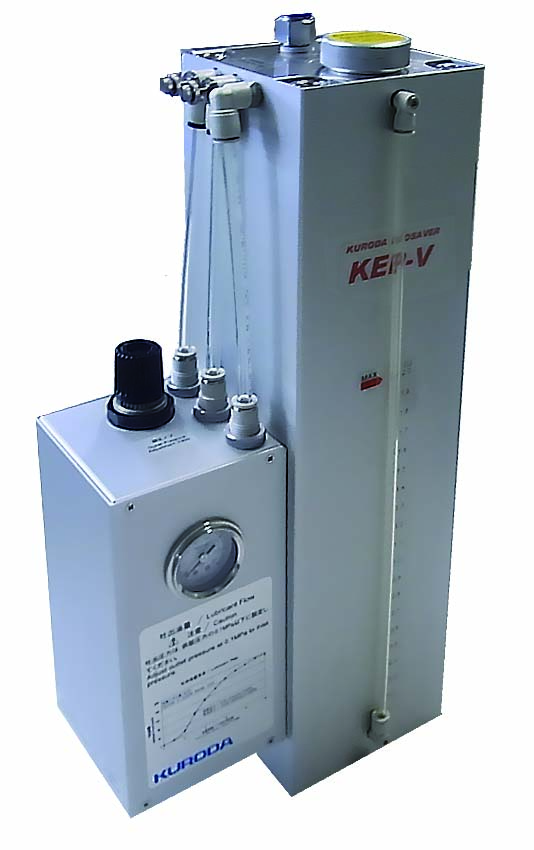

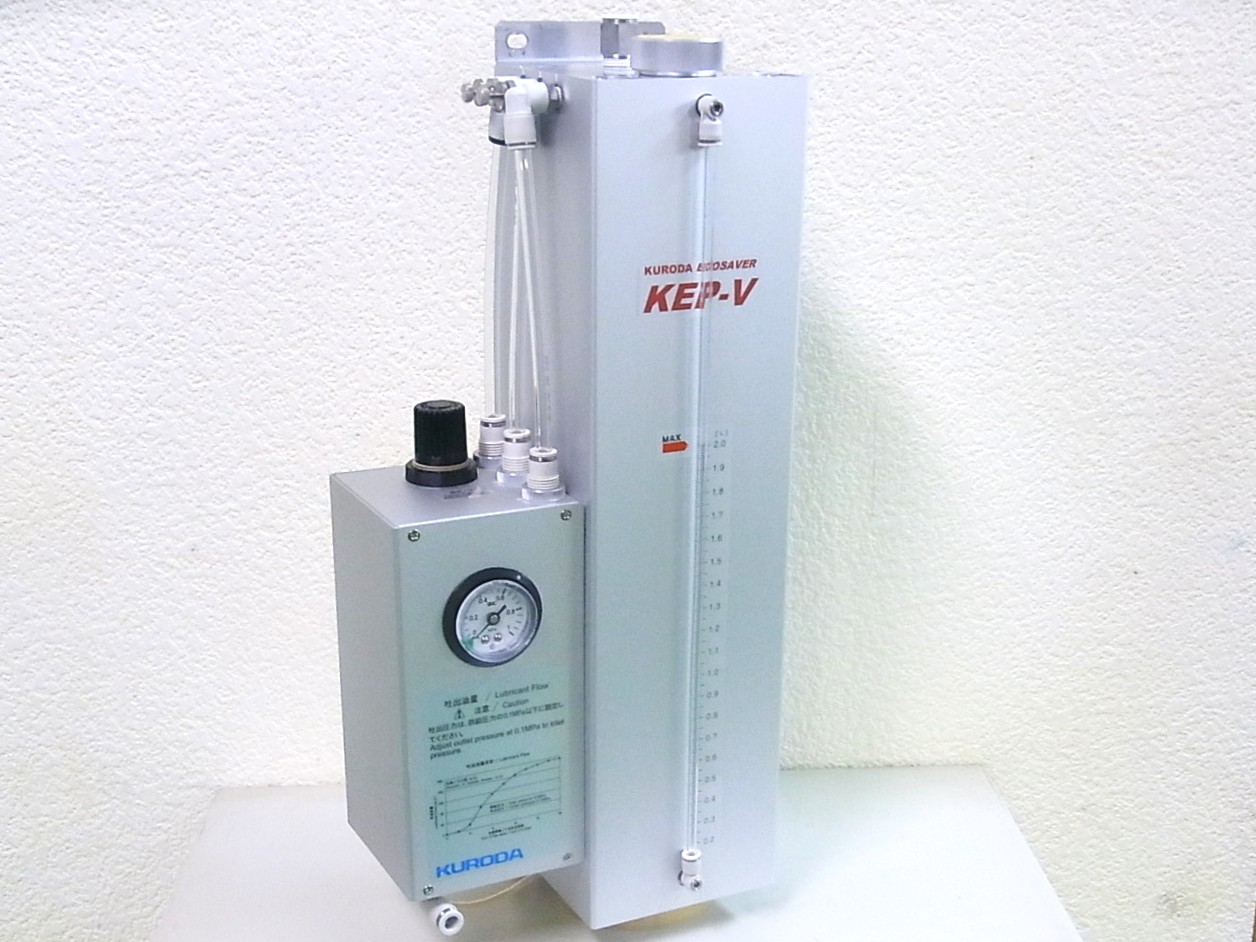

ECOSAVER® / KEP-V (Large Volume Type)
Features consolidated specifically for hang-on type nozzle.
Allows for implementation of eco-friendly semi-dry processing at low cost.
Semi-dry processing is an eco-friendly cutting technology that not only reduces the quantity of cutting oil used or reduces the cost of disposal of oiling equipment and waste oil processing, but also increases the cutting tool life and maintains the cutting accuracy.
ECOSAVER®, the minimal quantity lubrication system, generates mist inside the container by atomizing oil by using compressed air to only supply microscopic oil mist (microfog) along with air to the outside of the container.
"Eco-Saver KEP-V" offers a large oil discharge volume of up to 200 ml/h.
It can be used for applications like parts machining that require a greater oil volume than conventional methods.
MENU
- Built-in 2-level solenoid valve to control the discharge oil quantity
- Through constant pressure control, supply is always maintained at a stable pressure, regardless of the size of the discharge hole diameter
- Large discharge volume specification, capable of discharging up to 200 ml/h *1
- Support for water soluble cutting fluid *2
- Self-priming nozzle with a proven track record
- Built-in oil level switch to notify the timing of refill
*1 Example when Unicut Jinen MQL is used. The quantity of oil discharged also varies depending on the mist discharge port diameter and discharge pressure, etc.
*2 KURODA does not deal in water soluble cutting fluids. When using water soluble cutting fluid, please make sure to check with the manufacturer that it can be used as mist.
(When using, be sure to follow the product safety data sheet accompanying the water soluble cutting fluid.)
| Working pressure range | 0.2~0.7MPa |
|---|---|
| Discharge pressure | 0.1~0.6MPa With the constant pressure control system |
| Outlet air flow rate | 30~450L/min(ANR) |
| Oil quantity control | Min. and Max. diameter 2-stage switching |
| Oil quantity adjustment | By hand-operated throttle valve (with lock mechanism) |
| Discharge oil quantity |
0~200ml/h An example of “Unicut Jinen MQL” use |
| Cutting oil |
Eco-friendly cutting oil for minimal quantity lubrication system (Recommended oil: “Unicut Jinen MQL” by ENEOS Corporation) |
| Oil tank capacity | 2,000ml |
| Operating temperature range | 5~50℃ |
| Built-in solenoid valve | DC24V 0.6W x 2 |
| Exterior dimensions | W218 x D151.5 x H487 (mm) |
| Mass | About 8.5kg(With largest amount of oil in the tank) |
| How to use | Hang-on type recommendation |
