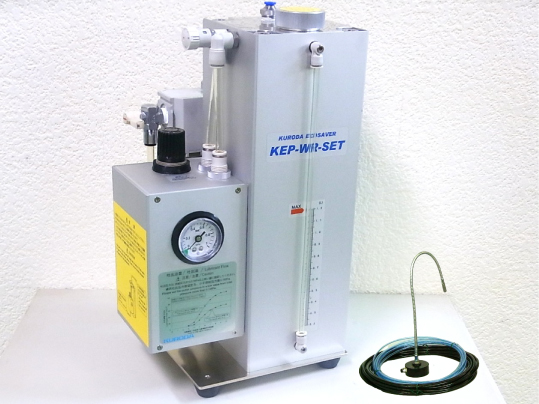

ECOSAVER® / KEP-WR (Hang-on Type)
Features consolidated specifically for hang-on type nozzle.
Allows for implementation of eco-friendly semi-dry processing at low cost.
Semi-dry processing is an eco-friendly cutting technology that not only reduces the quantity of cutting oil used or reduces the cost of disposal of oiling equipment and waste oil processing, but also increases the cutting tool life and maintains the cutting accuracy.
ECOSAVER®, the minimal quantity lubrication system, generates mist inside the container by atomizing oil by using compressed air to only supply microscopic oil mist (microfog) along with air to the outside of the container.
"Eco-Saver KEP-WR" is ideal for applications where cutting fluid is supplied using an external nozzle.
This includes machines such as lathes, sawing machines, hobbing machines, and machining centers.
MENU
| Working pressure range | 0.2~0.7MPa |
|---|---|
| Discharge pressure | 0.1~0.6MPa |
| Outlet air flow rate | 30~260L/min (ANR) |
| Oil quantity control | By hand-operated throttle valve (with lock mechanism) |
| Discharge oil quantity |
0~90ml/h Use two discharge outlet diameter 1.6 ejection and amount of oil. |
| Spray droplet diameter | Around 3 μm |
| Cutting oil |
Eco-friendly cutting oil for minimal quantity lubrication system (Recommended oil: “Unicut Jinen MQL” by ENEOS Corporation) |
| Oil tank capacity | 1,200ml |
| Operating temperature range | 5~50℃ |
| Mass | About 6.6kg (With largest amount of oil in the tank) |
