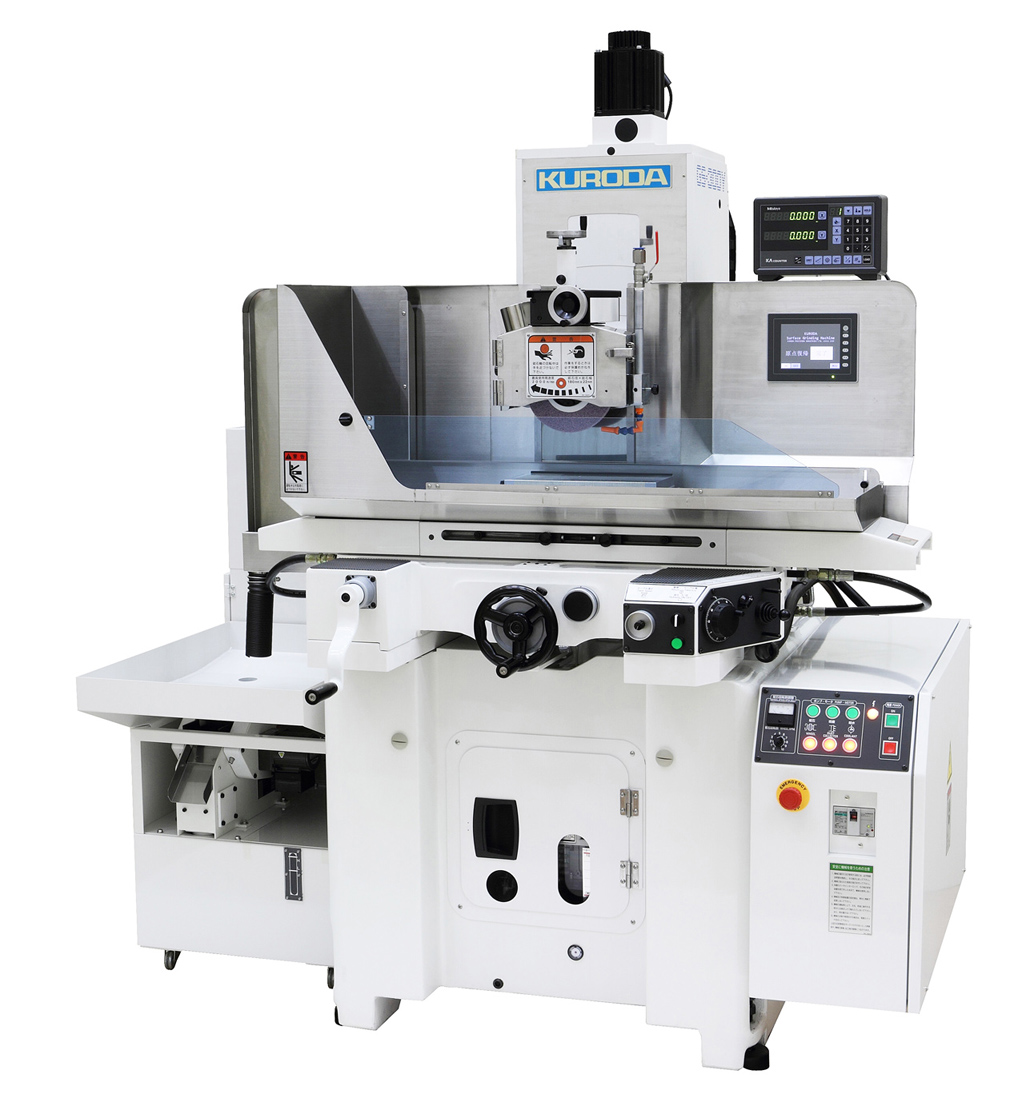

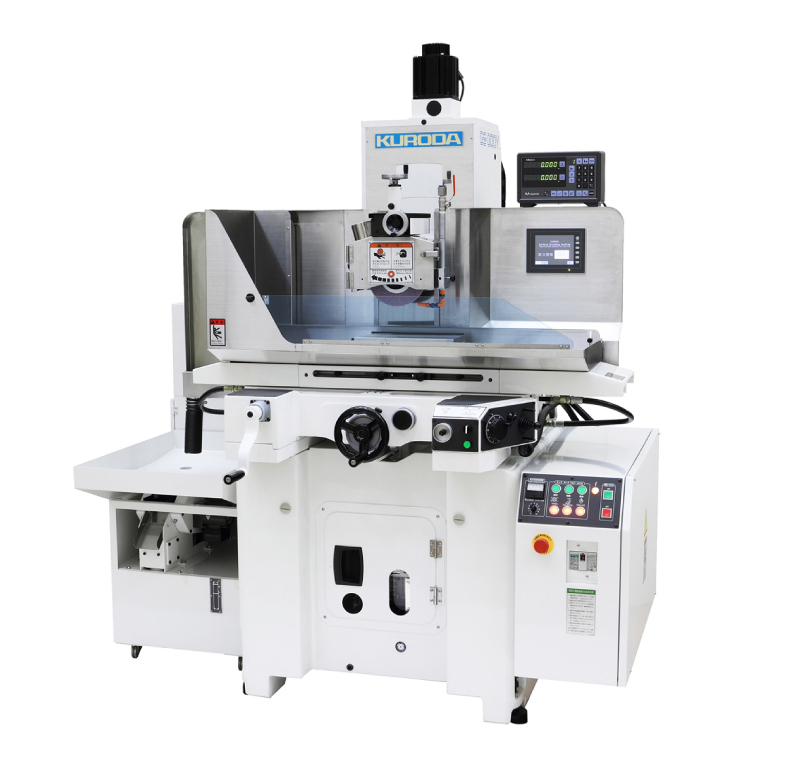

Precision Forming Surface Grinding Machine GS-30 Series
Just Size, Just Spec
A downsized version of the "GS-45 Series," this forming surface grinding machine achieves a 23% reduction in installation floor area.
MENU
Just Size － 23% Reduction in Installation floor area
Designed for small-scale machining, such as connector mold components. By downsizing the table and magnetic chuck, we have achieved a 23% reduction in space compared to the GS-45 Series.
Just Spec － A versatile machine equipped with functions comparable to those of an NC machine
The GS-45 Series, a best-selling machine with the concept of "Anyone can become a precision grinding craftsman starting today."
Inherits its high operability and functionality.
The ergonomic handle is easy to operate and ideal for users seeking compact usability.

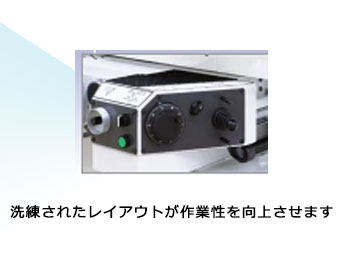

Compact design further enhances operability

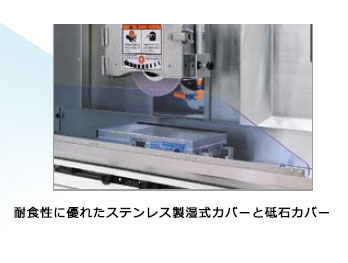

- Stainless steel wet cover and wheel cover with corrosion resistance
- Easy-to-understand main switches
- Digital scale counters for vertical and horizontal movements
- Equipped with an independent ambient-temperature lubrication pump that constantly supplies fresh oil to the sliding surfaces
