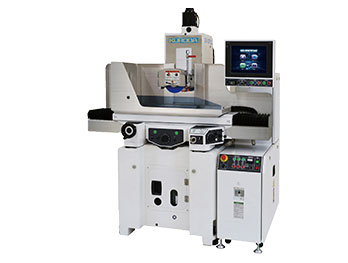

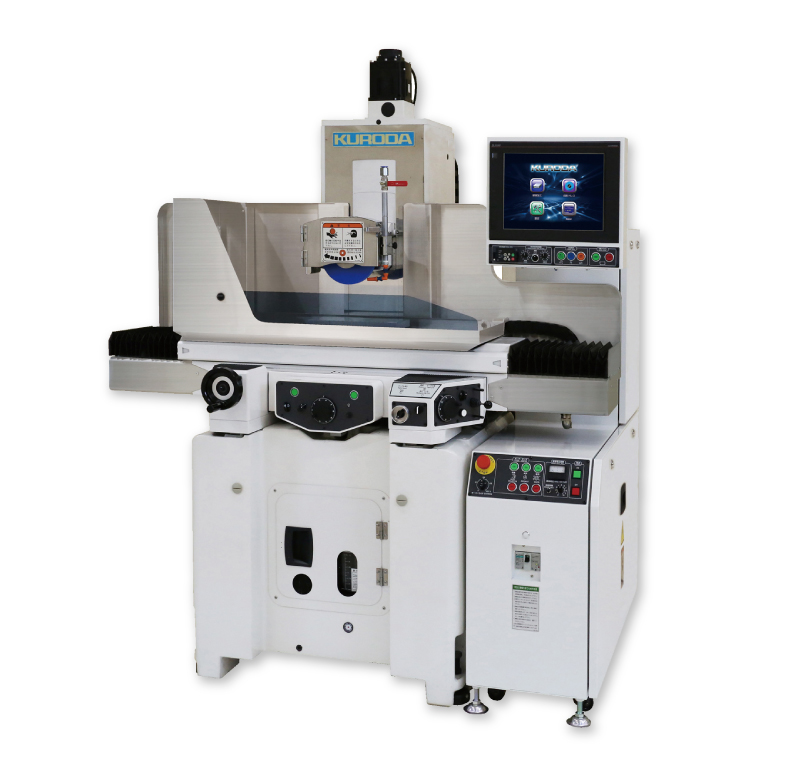

Precision Forming Surface Grinding Machine GS-30V(s)
Easy set up, easy view, and easy operation!
Optimal for very small workpieces.
Our smallest forming surface grinding machine. It combines environmental performance with the ability to meet diverse machining needs, all while pursuing ultimate ease of use. A user-friendly next-generation machine compatible with the interactive software "GS-SmartTouch®."
MENU
Space-saving design
- The required floor space is W1,660 x L1,600 mm, realizing a footprint smaller than our conventional model by approx. 50% (Compared with GS-45FL II)
- This is the industry's smallest class machine for precise forming and surface grinding

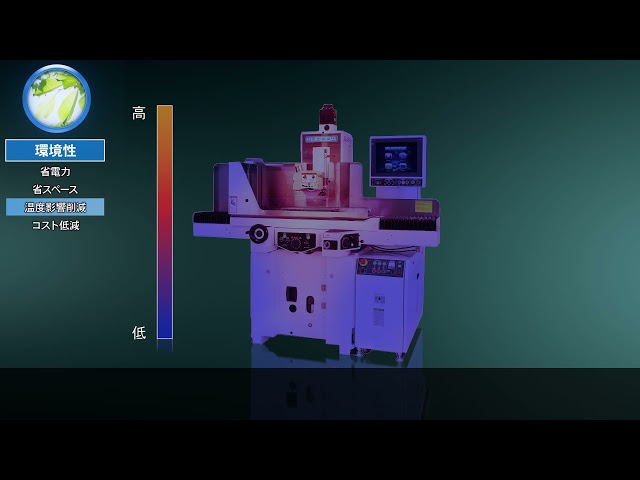

Energy-efficient and Eco-friendly features
- AC servo motor and KURODA high precision ball screw direct drive system are used for longitudinal feed
- Realizes high efficiency drive with a reduced friction loss, and cuts down energy consumption by 50% as compared with our conventional model
- Eliminating the need to use hydraulic oil, this product largely contributes to reducing burden on the environment
- Uses the sole collective lubricate oil device that can supply new oil to all slides at a normal temperature at anytime
High-speed and High-efficiency drive
- AC servo motors and KURODA high precision ball screws are used for all the vertical, cross, and longitudinal feeds
- Particularly for the longitudinal feed, the new technology realized precise and high-speed drive up to 40 m/min. (Patent pending)
- Comfortable manual operation of this forming grinding machine will make you feel the next-generation technology
Interactive software "KURODA GS-SmartTouchTM"
- The touch panel type interactive software has been greatly improved
- Anyone can easily perform various types of grinding and dressing work with this software
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
- Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
- Test machining is available. Please share details such as workpiece size, shape, and target precision.
- Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
