Precision Rotary Grinding Machine GSR-600
A new product born from the expertise cultivated through surface grinding machines.
Combines high environmental performance and operability. A rotary grinding machine that achieves high-precision machining.
MENU

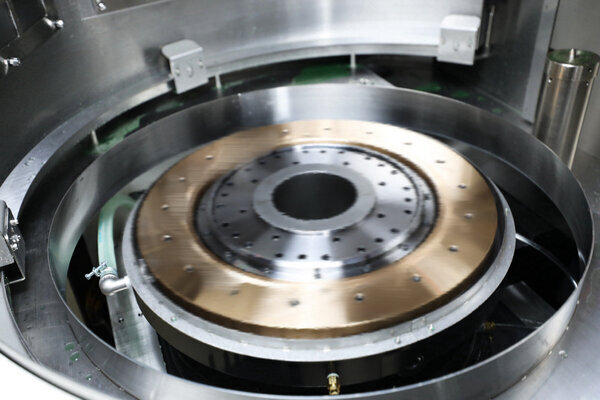

A uniquely designed hydrodynamic bearing for rotary table
A rotary table uses the hydrodynamic bearing combined with a bearing.
- A uniquely designed hydrodynamic bearing, combined with a large-sized angular bearing, achieves high rigidity and damping.
- The φ630 table features high surface runout accuracy and rotational precision, enabling stable and high-precision machining.
High-precision flat surface machining and taper machining
- Flat surface machining
Capable of flat surface machining brittle materials such as ceramics, as well as mirror surface grinding of difficult-to-machine materials.
- Taper machining
Taper angle can be easily set in the range of ±5° with the operation screen.
Here is the list of grinding examples.
-
Flat surface machining:Measurement results -
Taper machining:Setting screen -
Taper machining:Measurement results
Operator-friendly operability

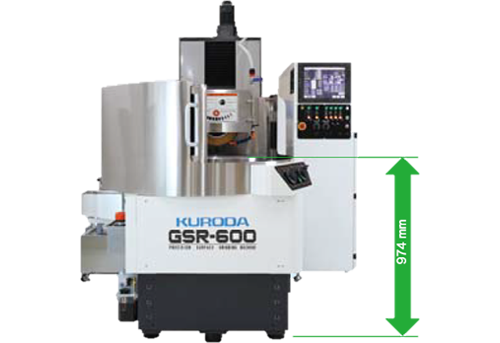

- By eliminating the tilt mechanism of the rotary table, the table height is optimized.
It makes grinding tasks, such as loading and unloading workpieces, easier to perform.
- A handle and switch layout focused on operability, enabling easier workpiece loading and check the machining process.
Ergonomic positioning for grinding tasks, reducing operator fatigue.
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
- Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
- Test machining is available. Please share details such as workpiece size, shape, and target precision.
- Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
