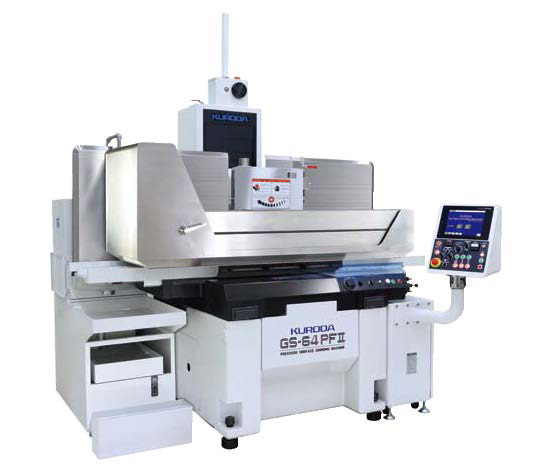

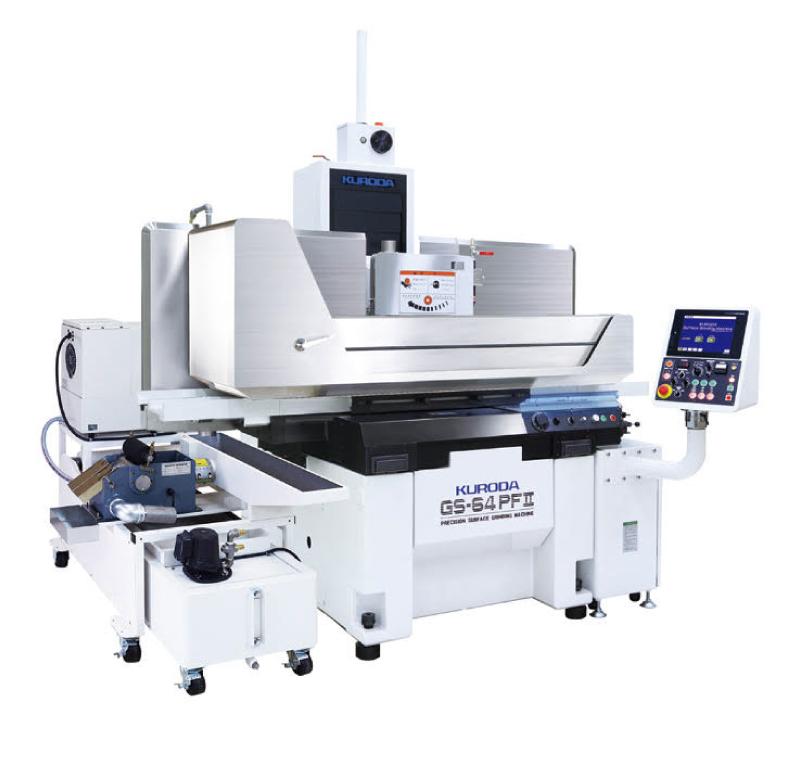

Precision Surface Grinding Machine GS-PFⅡ(s) Series
A universal machine designed with the concept of high-precision machining, improved work efficiency, and easy operation.
Outstanding operability based on ergonomics! A simple, high-performance machine that overturns the concept of conventional NC machines.
KURODA's best-selling machine that handles everything from general-purpose to high-efficiency and automation.
Equipped with interactive software “GS-SmartTouch®”, it can meet a wide range of machining needs.
- Magnet chuck size 700x400mm and 700x500mm specifications are also available
MENU
Exceptional Operability Based on Ergonomics
A simple, high-performance machine that overturns the conventional concept of NC machines
- Achieves easy and reliable operations with high precision
- Standard equipped with vertical and horizontal feed in minimum setting units of 0.1μm

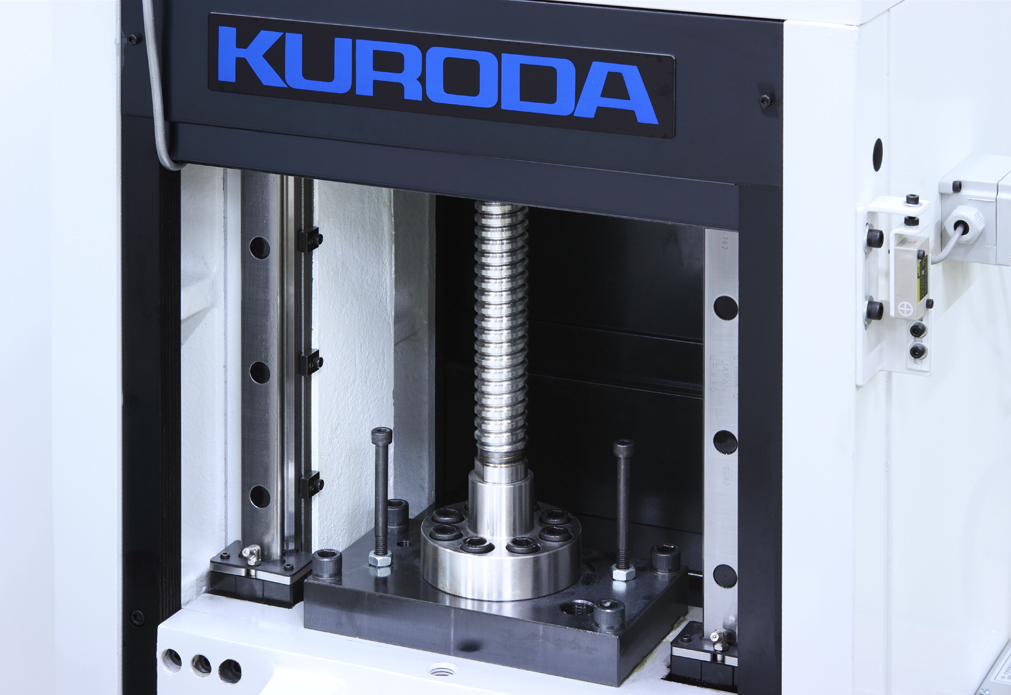

- Proprietary ball screws and servo motors adopted for vertical and horizontal feed, achieving high follow-up performance
Environmental Performance
Reduces customer burden and environmental impact after equipment installation

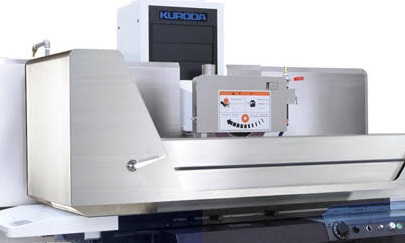

- Easy-to-use, foldable stainless steel front cover
- Minimal use of lubricating oil and hydraulic oil
Customization
Vrious options, customization is possible to meet your specific needs.
- Easy grinding of various shapes and form dressing
Interactive operation software "GS-SmartTouch®" - Supports automation
On-machine measuring system
- Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
- Test machining is available. Please share details such as workpiece size, shape, and target precision.
- Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
