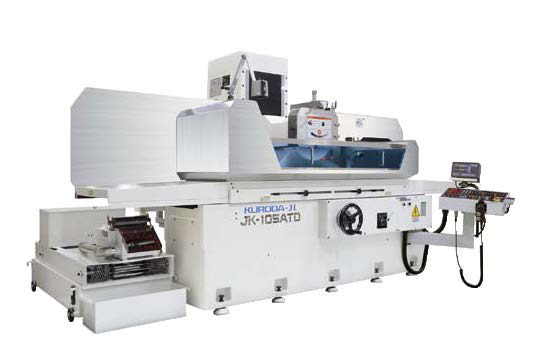

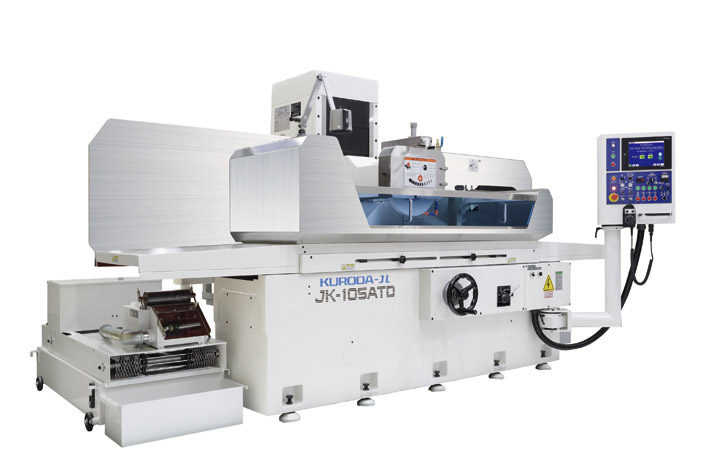

Precison Surface Grinding Machine JK-series
105-207, 12 types of large scale CNC grinding machines.
A global standard machine with excellent cost performance.
Our largest size surface grinding machine, up to W2000 x L700.
- 【Type I: Standard Package】
【Type II: Upgrade Package】
*Sizes 107, 127, 157, and 207 are made-to-order
MENU
- Easy operation and clear display panel.
- Grinding conditions can easily be input by keys.
- High precision and efficiency are available with the functions of cross-feed speed control and vertical-infeed setting in each Rough & Finish modes operations.
- Machine automatically power off after the finish of Auto-cycle modes.
- One-end and Both-ends can be selected. Cross-feed stroke can easily be set by teaching functions.
| Unit | JK-105 | JK-106 | JK-125 | JK-126 | JK-155 | JK-156 | JK-205 | JK-206 | |
|---|---|---|---|---|---|---|---|---|---|
|
Working surface of the table |
mm |
1050 x 500 |
1050 x 600 |
1550 x 500 |
1550 x 600 |
1550 x 500 |
1550 x 600 |
2050 x 500 |
2050 x 600 |
|
Max traverse of the table |
mm |
1200 x 560 |
1200 x 660 |
1700 x 560 |
1700 x 660 |
1700 x 560 |
1700 x 660 |
2200 x 560 |
2200 x 660 |
| Distance from table top to spindle center |
mm |
600 |
|||||||
|
Grinding wheel dimensions |
mm |
405 x 50 x 127 |
|||||||
|
Magnet chuck dimensions |
mm |
1000 x 500 |
1000 x 600 |
1200 x 500 |
1200 x 600 |
1500 x 500 |
1500 x 600 |
2000 x 500 |
2000 x 600 |
|
Dimension of the machine (W x D x H) |
mm |
3670 x 3040 x 2070 |
3670 x 3140 x 2070 |
4820 x 3040 x 2070 |
4820 x 3140 x 2070 |
4820 x 3040 x 2070 |
4820 x 3140 x 2070 |
5820 x 3040 x 2070 |
5820 x 3140 x 2070 |
| Machine net weigt | kg | 6000 | 6500 | 7500 | 8000 | 7500 | 8000 | 9000 | 9500 |
