Peripheral equipment for Surface Grinding Machines: Dressers
A lineup including small-diameter concave/convex R dressers and side dressers.
Offers a variety of dressers tailored to applications such as R-shaping and sharp-angle shaping on the inner side (spindle side) of grinding wheels. Even non-experts can easily perform grinding wheel shaping.
MENU
- Enables forming convex R from 0 to 33 and concave R from 0 to 100 with a single bar.
- The bar features three reference points, selectable based on the size of the R. The shortened distance from the bar to the dressing point ensures more precise dressing.
- A robustly constructed diamond tool that enables accurate R shaping.
- Easily performs sharp-angle shaping on the inner side (spindle side) of grinding wheels
- A precision angle dresser with a sine bar mechanism and sliding surfaces on both vertical and horizontal sides
Forms high-quality finished surfaces by sliding along the reference surface - Shaping angle range: 0–180 degrees
- Compact and highly stable, it can also be used as a parallel dresser
Shapes the vertical side to 60 degrees and the horizontal side to 30 degrees
When the head is set at 30 degrees, it functions as a parallel dresser
- The position of the diamond tool can be set arbitrarily.
- Uses an Ultra Screw for the dresser clamp screw, preventing damage to the dresser body.
- Main body made of SKS steel with full surface hardening (HRC60).

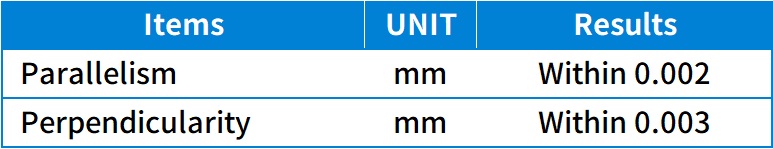

Accurate grinding wheel width shaping and positioning relative to the reference surface
- Capable of sizing up to 40.0mm grinding wheel width and 35mm maximum depth.
- Two types of diamond tool mounting holes are available: with tilt and without tilt (4 locations in total).
- Diamond tool fixing screws are scratch-resistant, allowing for precise position setting.
- Precise width sizing and forming is possible due to block gauge setting.
- The main body, which has undergone high-precision grinding, allows accurate positioning of the dresser from the reference surface.
- The main body is made of SKS-3, fully hardened (HRC60).
- Stable dressing is achieved by providing the diamond tool mounting hole at an angled position.
- The body is angled at 1°30' for finishing and 30' for roughing.

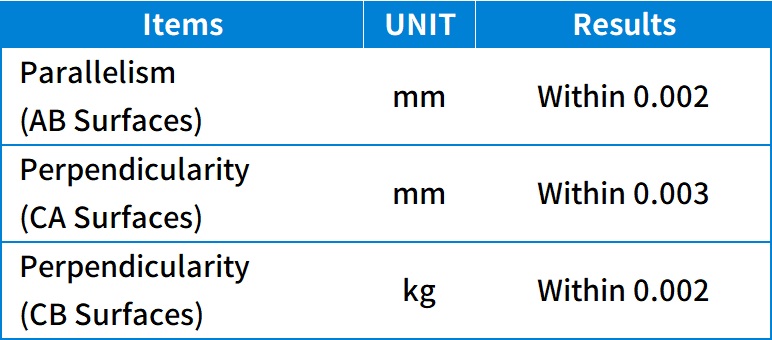

- Can be used not only as a parallel dresser but also as a side dresser by tightening the stopper screw.
- Even beginners can easily perform counterbore shaping of grinding wheels.
