Peripheral equipment for Surface Grinding Machines: Ultra Series
Prevents workpiece lifting and ensures precise chucking
Ultra Screw adopted for clamp screw section. The screw tip incorporates an anti-rotation mechanism, preventing co-rotation of the workpiece and the screw during tightening, as well as workpiece lifting. This ensures accurate chucking without damaging the workpiece.
MENU

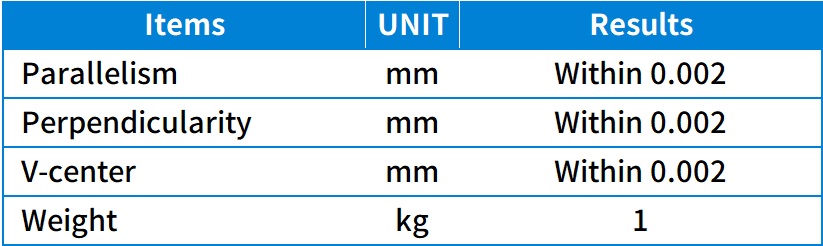

- As all surfaces are finished with ultra-high precision grinding, it can also be used as a reference block
- UB-100: Equipped with two mounting holes for diamond tools used with grinding wheel dressers, making it easy to support dressing operations
- UB-80: Can be mounted on sign plates SP50 and SP100. Additionally, thanks to the V-groove, it can also chuck cylindrical workpieces
- Main body made of SKS-3 with full surface hardening (HRC61)
A vise that combines the functions of a precision right-angle block and a micro vise
- Equipped with the functionality of both a vise and a right-angle block.
- The vise section features a patented correction structure, enabling chucking with near-zero error.
- Allows three-sided grinding in a single chucking (patented).
- As all surfaces are finished with ultra-high precision grinding, it can also be used as a reference block.
- Main body made of SKS-3 with full surface hardening (HRC61)
A vise with a width of 8–70 mm that enables three-sided grinding in a single chucking.
- The Ultra Screw, designed with a tip smaller than the root diameter, allows for easy removal.
- The vise section features a patented correction structure, enabling chucking with near-zero error.
- Allows three-sided grinding in a single chucking (patented).
- The Ultra Screw, designed with a tip smaller than the root diameter, allows for easy removal.
- The vise section features a patented correction structure, enabling chucking with near-zero error.
- Allows three-sided grinding in a single chucking (patented).
- The SP50 has 18 set holes, and the SP100 has 32 set holes, allowing for a wide range of applications when combined with right-angle blocks, V-blocks, or three-sided micro vises.
- Supports heavy grinding and milling operations with the use of a lock bar.
- Can be mounted on the Universal Sign Plates SP50 and SP100.
- Can be used in a wide range of applications by utilizing accessories.

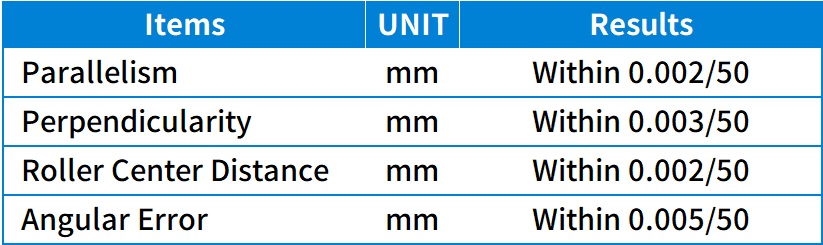

- Ideal for angled machining of small-sized workpieces.
- Supports heavy grinding with the use of a lock bar.
- Can be used in a wide range of applications by utilizing collars, special screws, and clamps.
- Equipped with multiple vertical and horizontal reference surfaces, making it suitable for workpieces of various sizes and shapes.
- Capable of chucking cylindrical workpieces (SB80).
