Compact Family KURODA Miniature Ball Screws US

  • Compact Family KURODA Miniature Ball Screws

Ideal for device downsizing and automation
A wide range of compact offerings

Find your ball screw size using our convenient size map.

MENU

Miniature Ball Screw Size Map
Screw
shaft
diameter
（mm）		 Lead（mm）
1 1.5 2 2.5 3 4 5 6 8 10 12 15 16 20 24 25 30
5 ◯
6 ◯ ◯ ◯ ◯
8 ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
10 ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
12 ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯

Features

KURODA's nut dimensions for shaft diameters of 6 mm and 8 mm are the smallest in the world

Comparison of Nut Dimensions

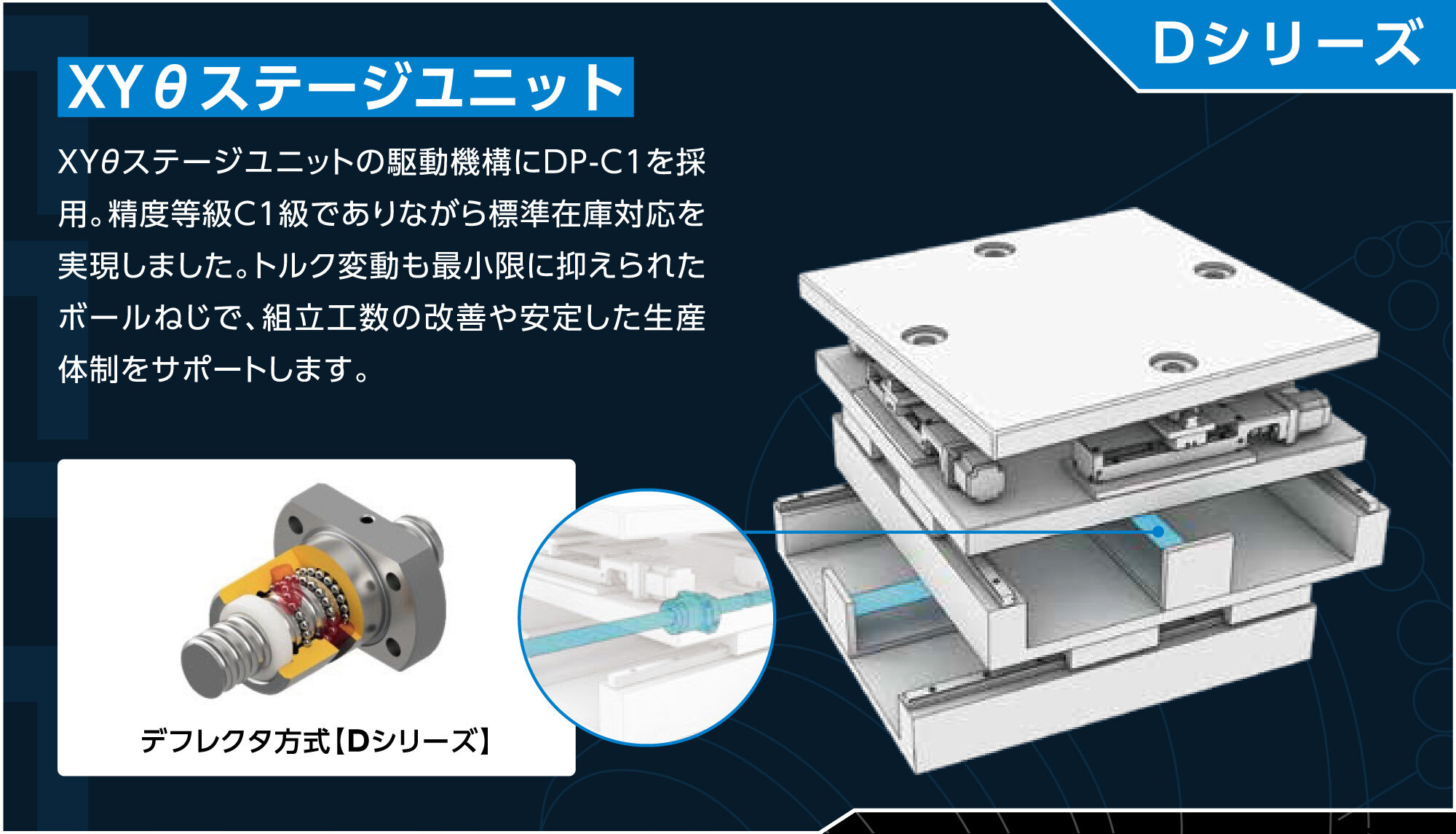

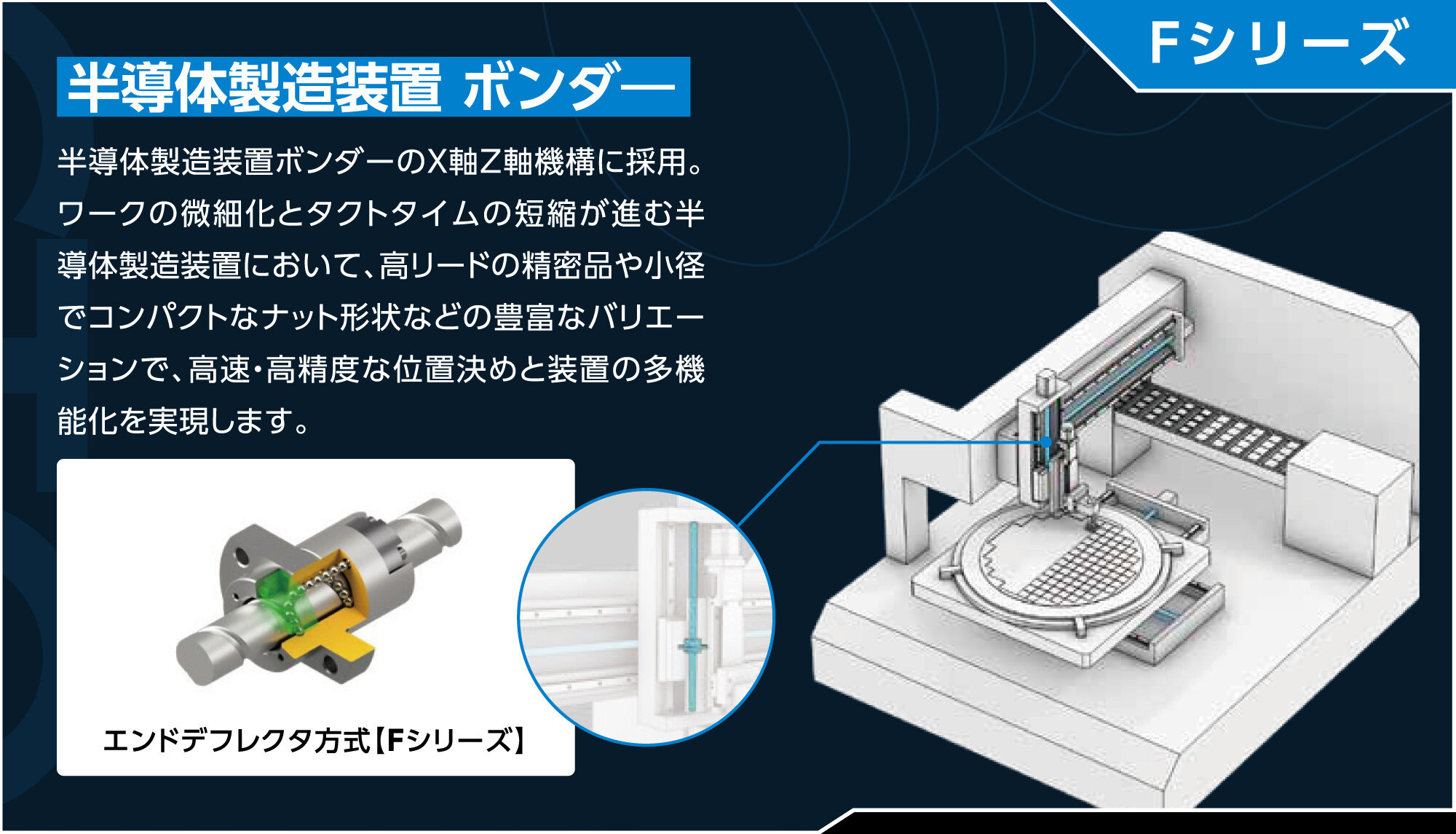

Application Example

Contributes to lowering the profile of the table and reducing the unit footprint.

Performance / Specifications

Nut Dimensions

Specifications and Nut Dimensions

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
