Flat surface grinding of large workpieces

  • Flat surface grinding of large workpieces

Flat surface machining of large workpieces requiring both high straightness and high-quality surface roughness

Application: Components for coating equipment for lithium-ion batteries

Items Results

Workpiece

Material HPM38
Hardness HRC55
Size W950×D200×H100 mm

Accuracy

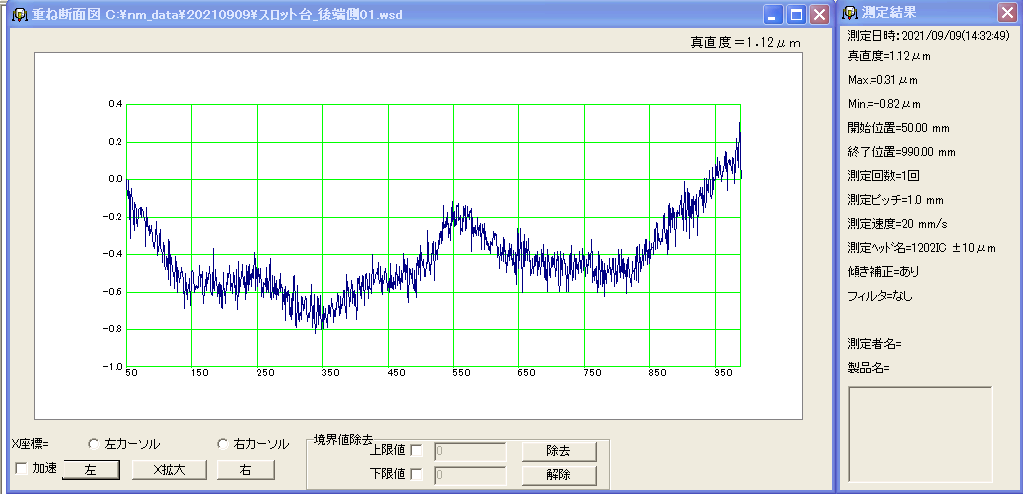

Straightness 1.12 μm
Surface roughness(Ra) 0.09 μm

Machining time

Finishing process 53 分(Grinding amount 0.004 mm)

Machine model used

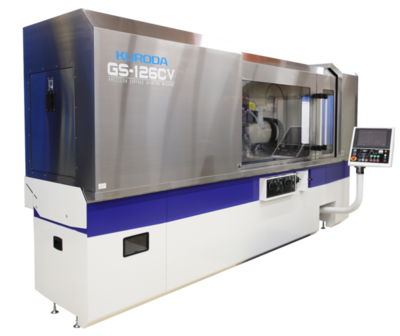

Machining equipment GS-126CVs
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
  • Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
  • Test machining is available. Please share details such as workpiece size, shape, and target precision.
  • Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
