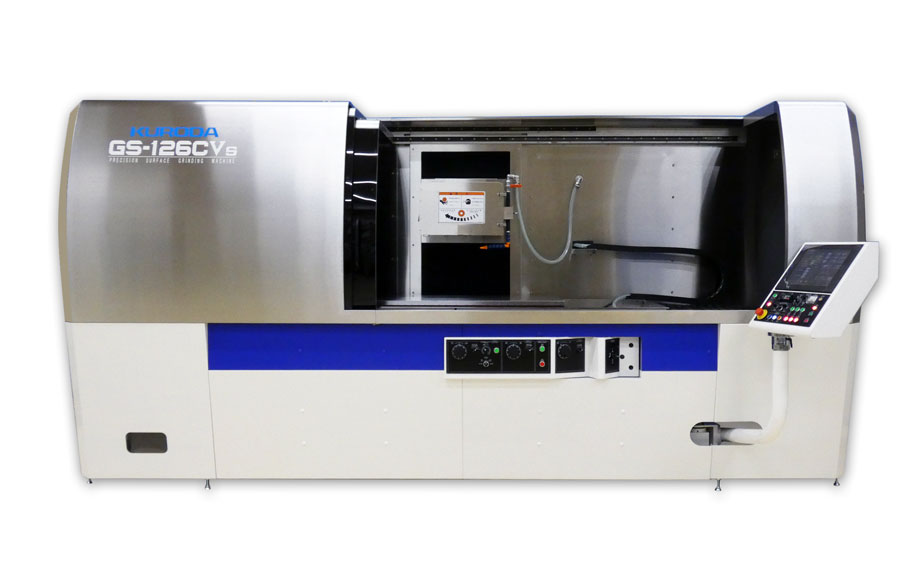

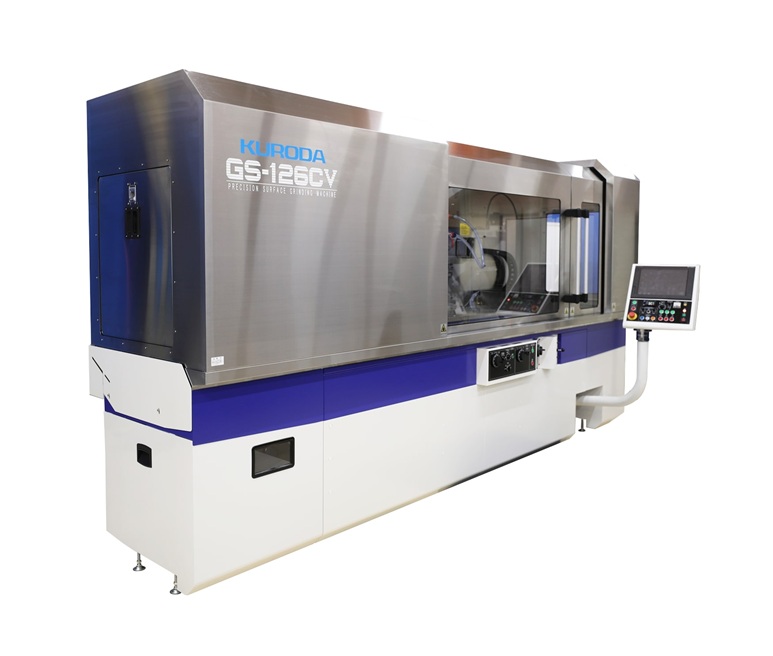

Precision Surface Grinding Machine GS-126CV(s)

  • Precision Surface Grinding Machine GS-126CV(s)
  • Precision Surface Grinding Machine GS-126CV(s)

Achieves energy efficiency and space-saving design, even for large-sized machines.

A next-generation surface grinding machine that meets demands for high functionality, precision, environmental performance, and space efficiency.
The required floor space of the machine has been reduced by 25% compared to machines of equivalent size.

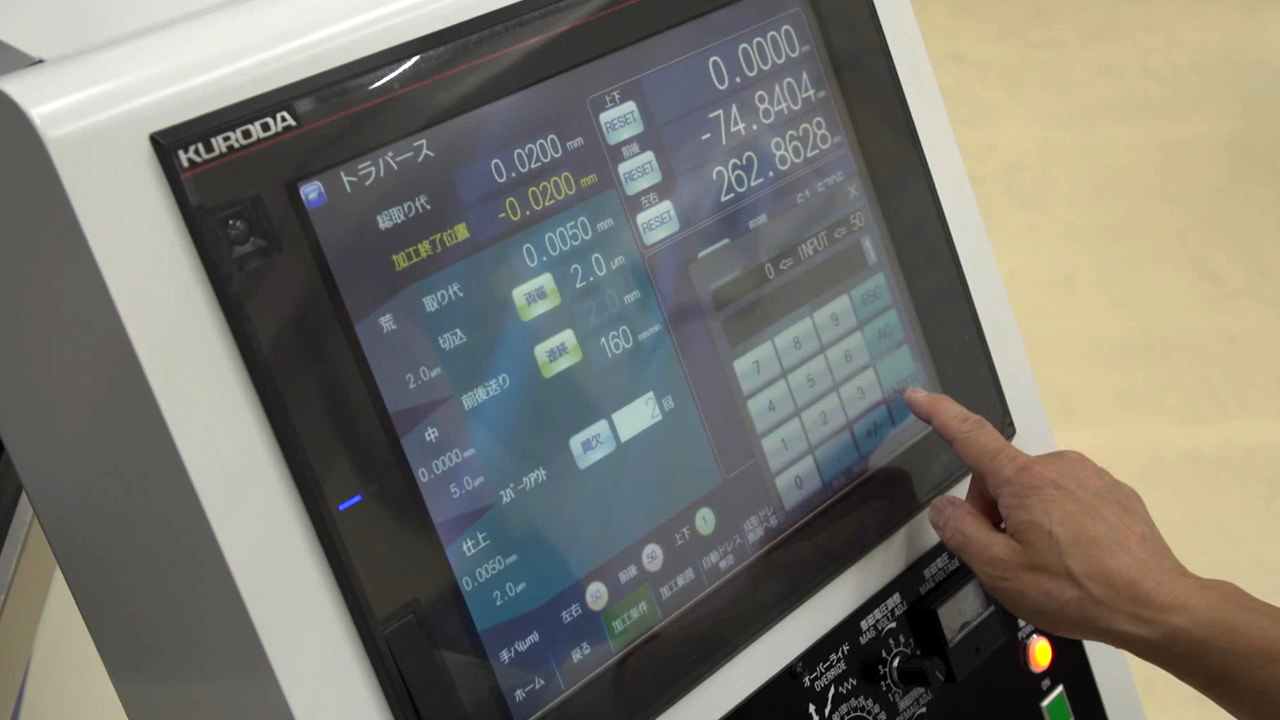

Equipped with the interactive software "GS-SmartTouch®," enabling compatibility with a wide range of machining needs.

  • Magnetic chuck size 1300x600 mm specifications are available

Energy Saving & Ecology

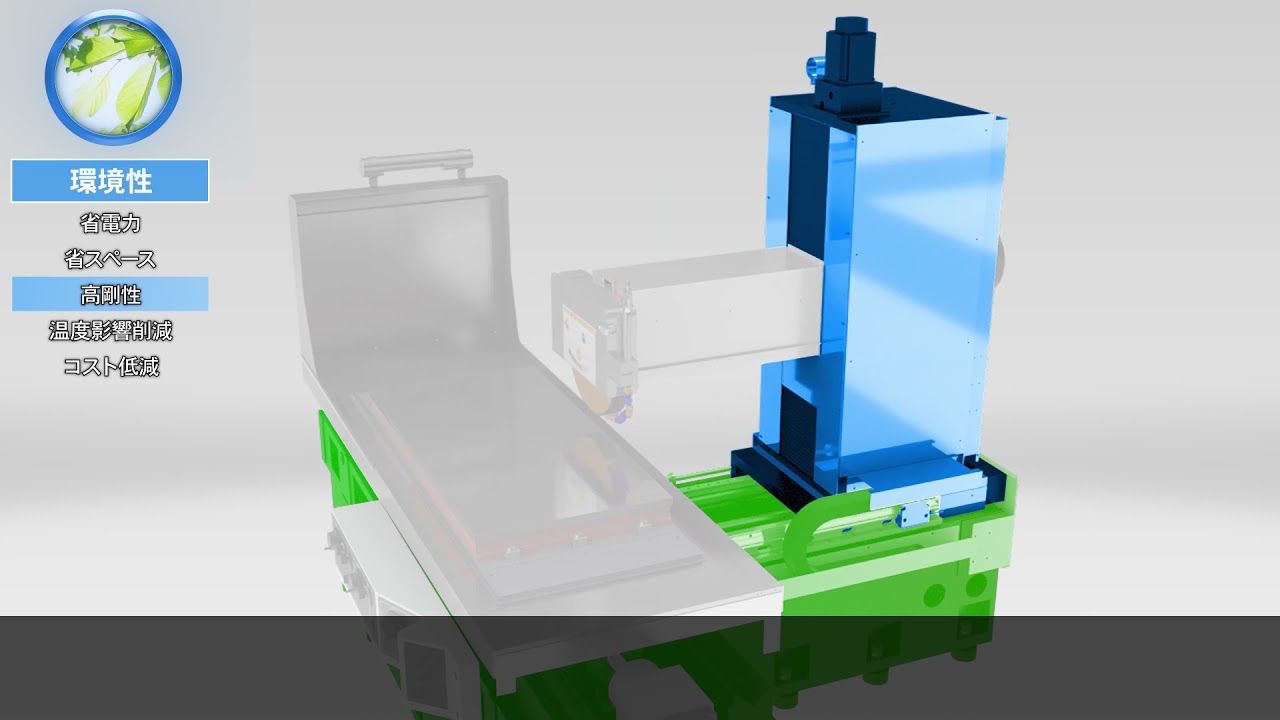

By adopting our proprietary precision ball screw and servo motor mechanism for longtidunal feed, friction loss is reduced.


  • Maintenance related to hydraulic oil is unnecessary, and the reduction in generated heat contributes to the stability of the machine's precision and reduces thermal impact on peripheral equipment
  • Since the amount of generated heat is reduced, the stability of the main unit's precision is improved, and thermal deformation to peripheral equipment is also reduced
  • By reviewing the structure, we succeeded in reducing the installation floor area by approximately 25% compared to general equivalent class models

Customization

Vrious options, customization is possible to meet your specific needs.


Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
  • Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
  • Test machining is available. Please share details such as workpiece size, shape, and target precision.
  • Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.

Support Tools

Inquiries About Products

Please contact us using the inquiry form or your nearest sales office.
