Simultaneous grinding of multiple pieces inner/outer

  • Simultaneous grinding of multiple pieces inner/outer

High-efficiency machining for mass production parts

Machining that utilizes the high rotational accuracy of the rotary table, enabling high-precision flat surface grinding without causing rounding.

ItemsResults

Workpiece

Material S45C
Size W150×D50×H50 mm

Accuracy

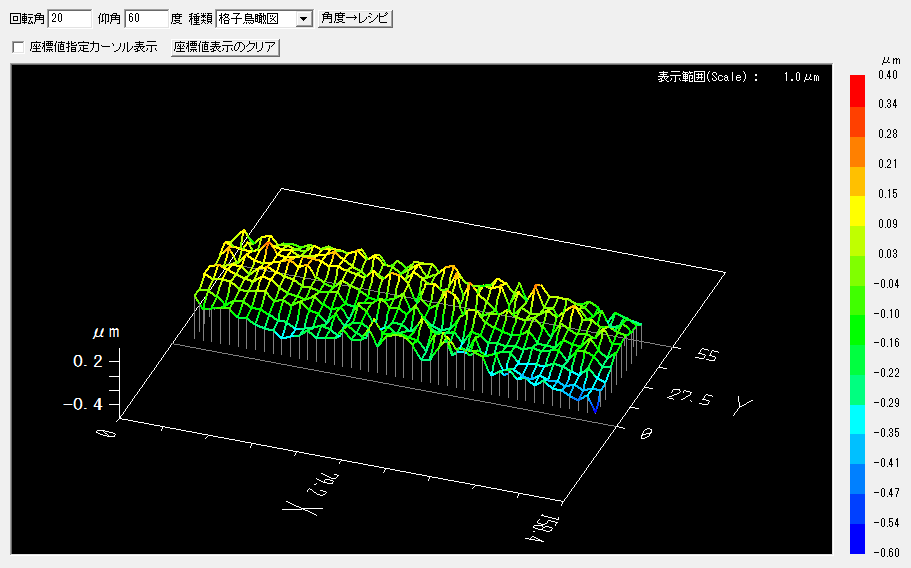

Flatness (Inner) 0.87 μm

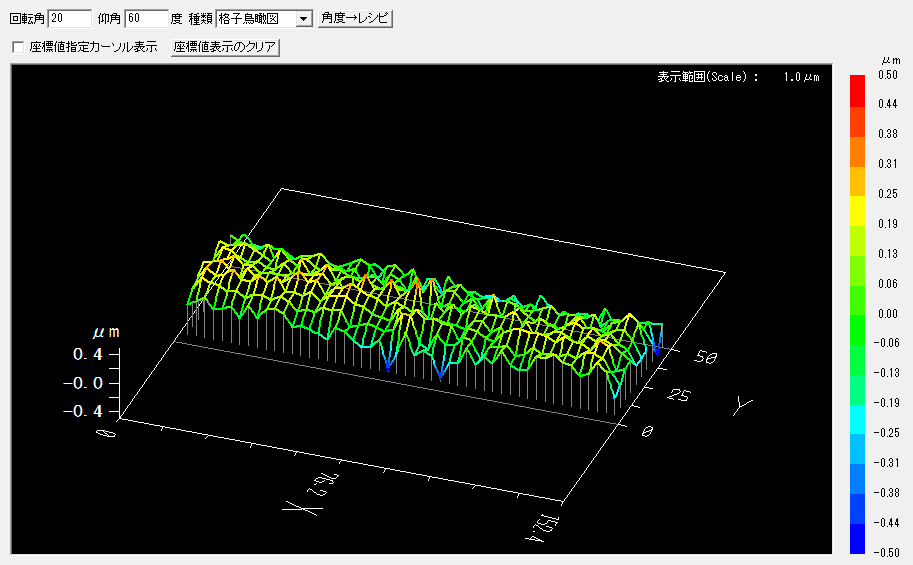

Flatness (Outer) 1.20 μm

Machine model used

Machining equipment GSR-600
Measuring equipment SF-640M
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
  • Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
  • Test machining is available. Please share details such as workpiece size, shape, and target precision.
  • Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
