Flat surface grinding of ceramics plate

  • Flat surface grinding of ceramics plate

Grinding of difficult-to-machine materials requiring high flatness and surface roughness

Application: Semiconductor manufacturing equipment

ItemsResults

Workpiece

Material Al2O3
Size W600×D300×H40 mm

Accuracy

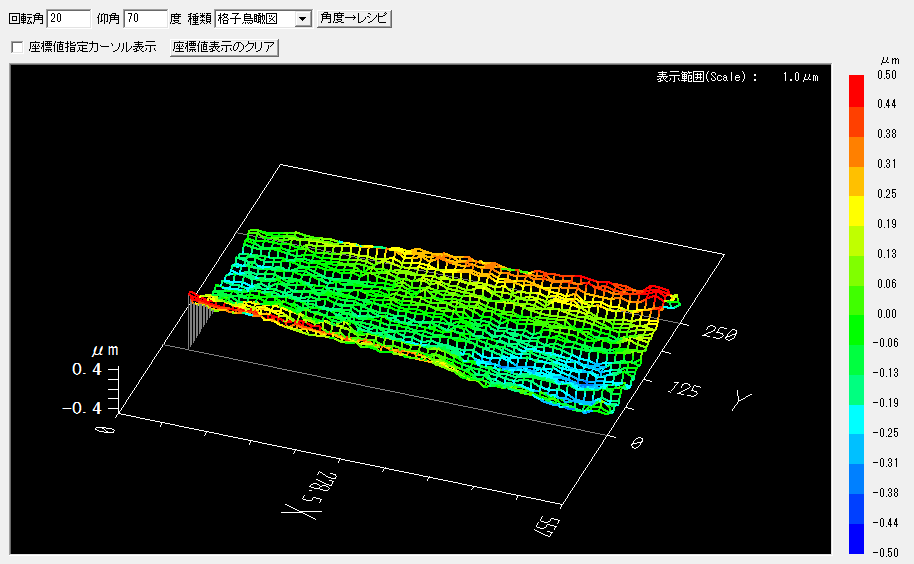

Flatness 1.47 μm

Machining time

30 min (Allowance 0.008 mm)

Machine model used

Machining equipment GS-126CVs
Measuring equipment SF-640M
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
  • Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
  • Test machining is available. Please share details such as workpiece size, shape, and target precision.
  • Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
