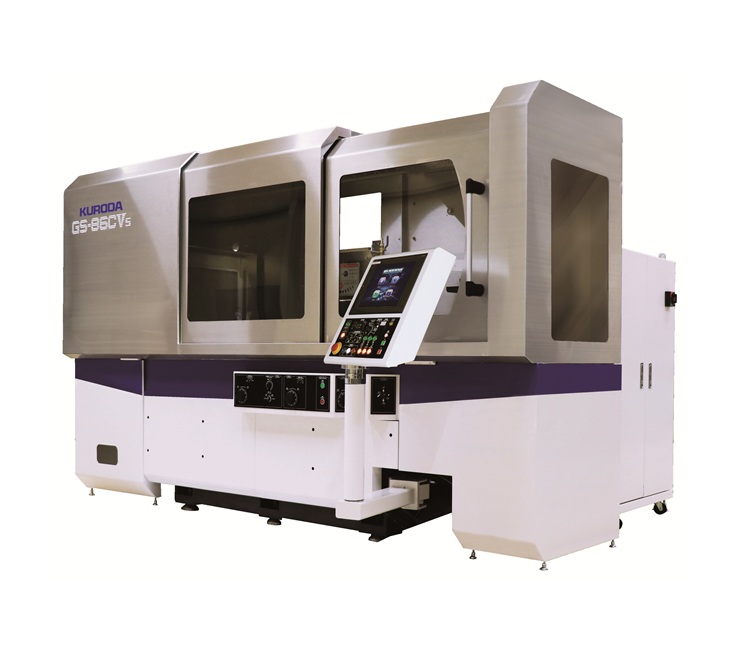

Precision Surface Grinding Machine GS-86CV(s)
Energy-saving, eco-friendly and user-friendly machine.
A next-generation surface grinding machine designed to meet the machining demands of increasingly larger workpieces.
- Magnetic chuck size 900x600 mm specifications are available
MENU

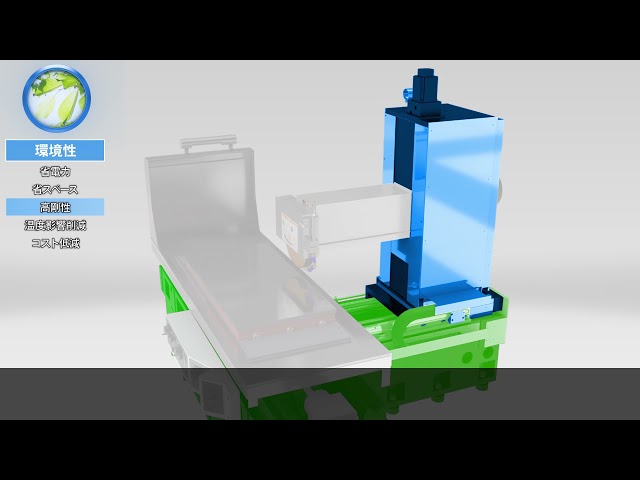

High rigidity of the machine body realized by FEM analysis
For the bed structure of the machine body, T-shape integrative structure was adopted to improve rigidity.
Proper rib allocation realized a low center of gravity and excellent stability.
Compact design has further improved operability
- No hydraulic oil system
AC servo motor is used for longitudinal feed, and KURODA high precision ball screw direct drive system reduced friction-loss and realized high efficiency drive. - High speed, high precision longitudinal reversal
Newly developed technology enables high speed longitudinal drive (Max. 40 m/min) and high precision positioning. (Patent pending) - Greatly reduced heat generation
No heat is generated from the hydraulic unit, which minimizes the influence on the ambient temperature. - Reduced oil consumption
No hydraulic oil system contributes to lesser burden on the environment. - Improved operability
Comfortable manual operation of this surface grinding machine will make you feel the next-generation technology.
Customization
Vrious options, customization is possible to meet your specific needs.
- For dramatic improvement in machining efficiency
Ultra-fine-bubbles - Easy grinding of various shapes and form dressing

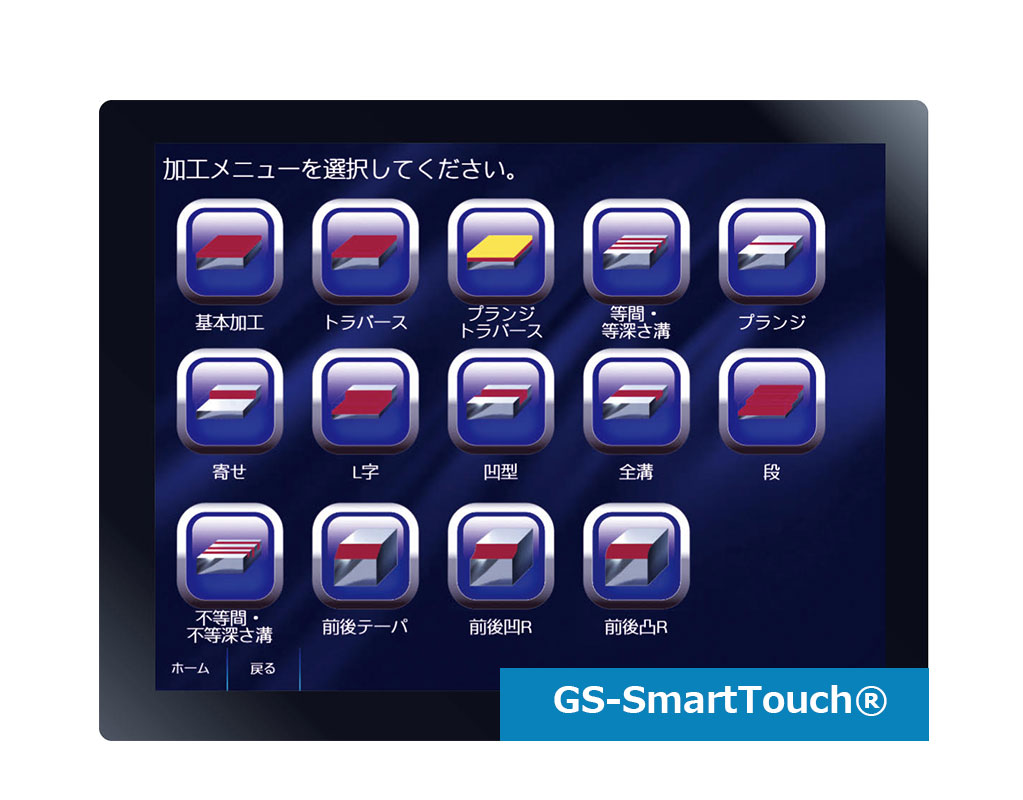

Interactive operation software "GS-SmartTouch®" - Supports automation
On-machine measuring system
Automatic approach function
Automatic dressing that automatically determines the optimal dressing operation
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
- Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
- Test machining is available. Please share details such as workpiece size, shape, and target precision.
- Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
