Mirror surface grinding of ring-shaped workpiece

  • Mirror surface grinding of ring-shaped workpiece

Machining requiring high-quality surface roughness

Application: Mold parts, Medical components, Semiconductor manufacturing equipment

Items Results

Workpiece

Material SKS3
Size φ380 x φ30 t=25(mm)

Accuracy

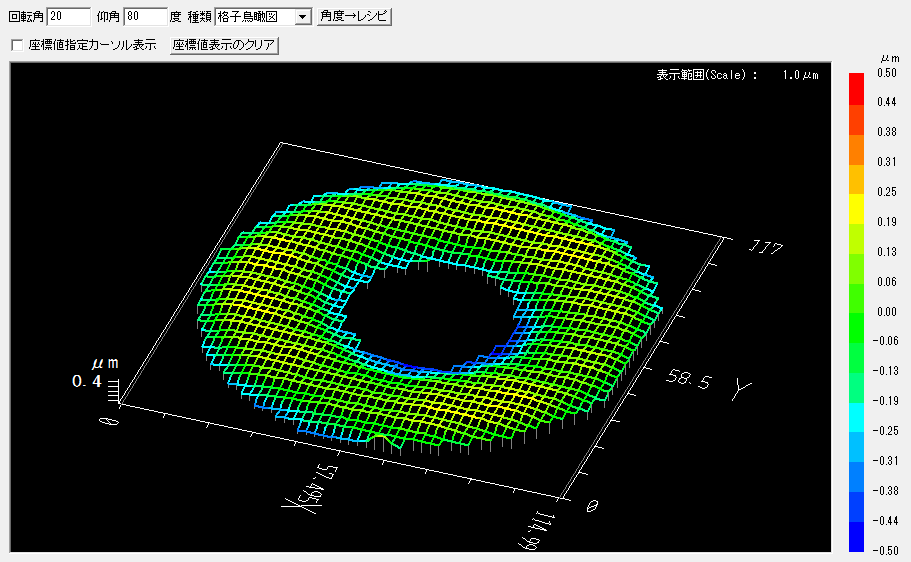

Flatness 0.69 μm
Surface roughness (Ra) 0.0145 μm

Machine model used

Machining equipment GSR-600
Measuring equipment NANOMETRO®700FR
Introduction to the Machining and Measurement Solution Room (Futtsu City, Chiba Prefecture)
  • Our "Machining and Measurement Solution Room," located within our Futtsu factory, features operational machines on display.
  • Test machining is available. Please share details such as workpiece size, shape, and target precision.
  • Consultation booths in the room are available to discuss your problems, issues, and questions until you are satisfied with the results.
